OPERATING MANUAL PAT-1, PAT-2, PAT-2E, PAT-10 version 1.02

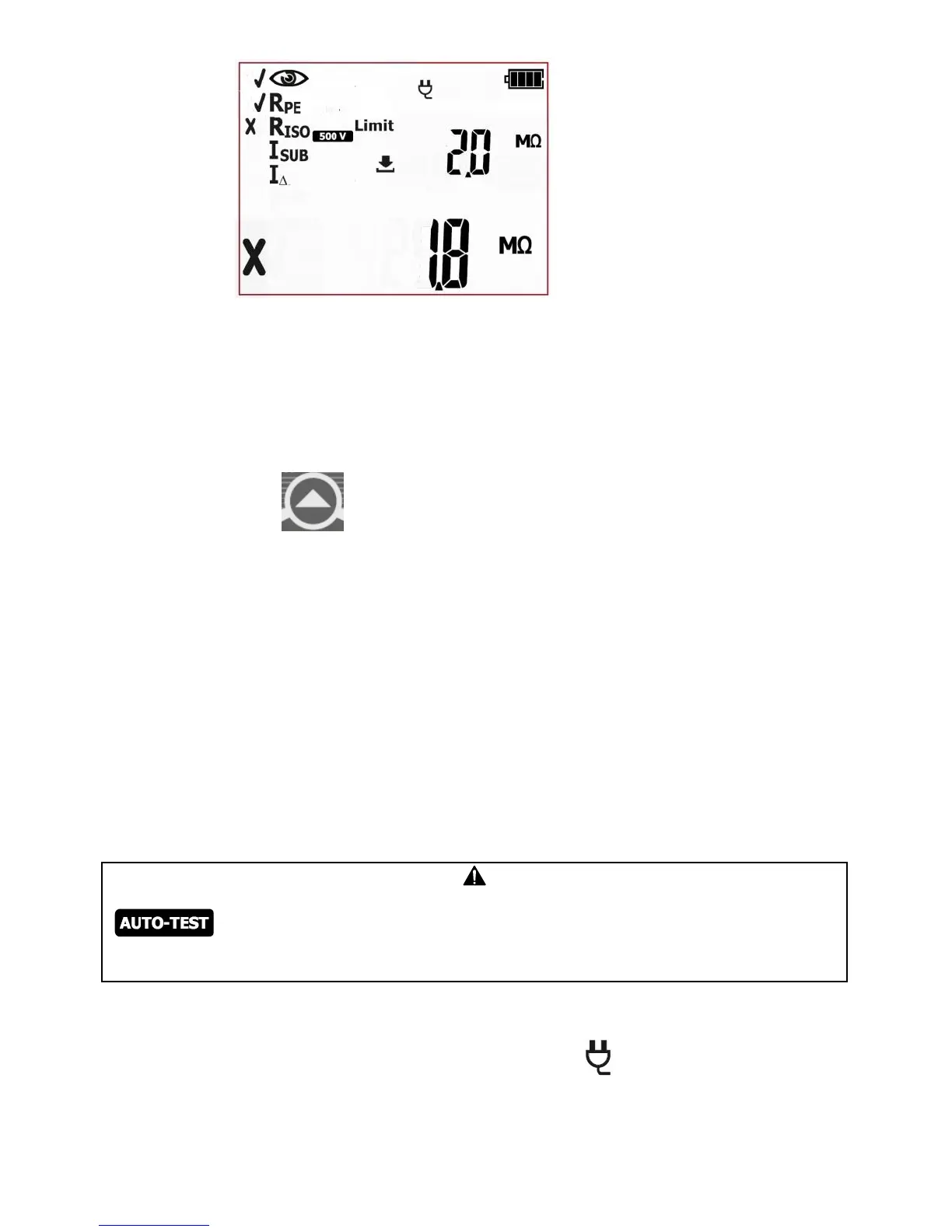

Negative test result for the
tested device. One of the
subsequent tests has
ended with negative result
- that result is displayed
on screen (screen on the
left, as an example, shows
failed insulation resistance
test). Red LEDs of FAIL
indication are on.
The result is displayed on screen until ESC button is pressed, another test is run
by pressing START/STOP button, measurement mode is changed, settings mode
is activated or the test result is stored in the memory.
NOTE:
When a test result is incorrect and thus the entire auto test (FAIL), eg. caused by incorrect connec-
tion of a test probe, it is possible to return to the measurement that was conducted last and repeat it.
In order to do that press when the autotest summary is displayed on screen.
If the device under test, or its power cord, is equipped with portable residual current device
(PRCD), its parameters shall also be checked. – see section 4.6 of this manual.
More messages displayed by the tester are described in section 2.1.2 of this manual.
4.4 AUTO mode tests – Class II
This test is performed to evaluate the technical condition of the tested devices belonging to the safety
Class II equipment (and the majority of the devices in Class III). The principles for carrying out each
single test, and setting their parameters, are the same as for the measurements in the manual mode.
After passing visual examination check (press PASS button), when the AUTO-TEST
( icon is displayed) mode is on, the tester will automatically run subsequent
tests. The ongoing measurements can be stopped by pressing START/STOP button.
NOTE:
Some tests in autotest procedures require the tester to be powered from the mains. When it's not
connected the test sequence can't be initiated, mains plug icon: is flashing. In order to start the
selected set of tests, the mains power supply must be connected.
