OPERATING MANUAL PAT-1, PAT-2, PAT-2E, PAT-10 version 1.02
53

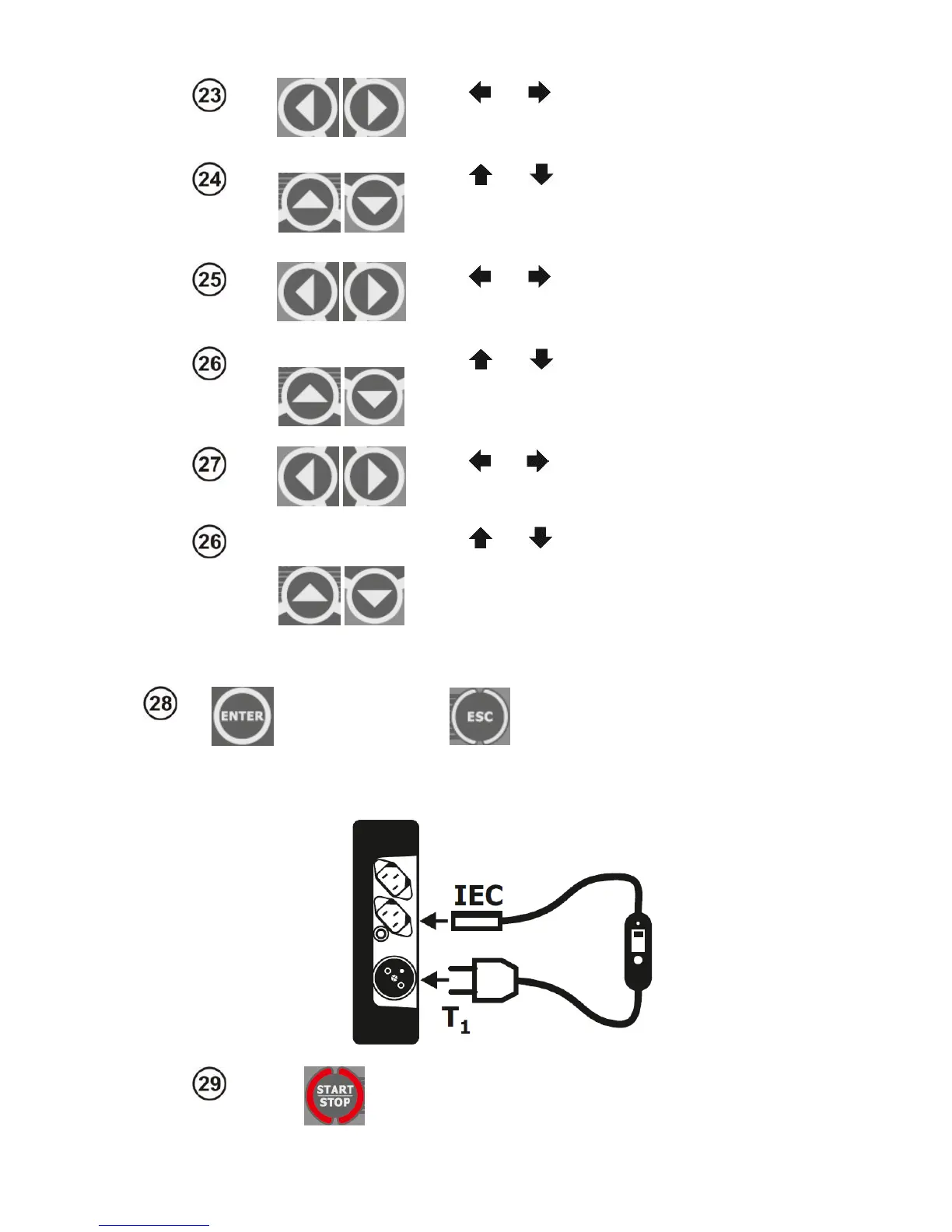

Use and to set the measurement for
I
Δn
x5 multiplication with the initial phase of
0°.
Use and to choose whether the
measurement for I
Δn
x5 with the initial
phase of 0° is to be performed („yES”) or
switched off („no”).
Use and to set the measurement for
I
Δn
x5 multiplication with the initial phase of
180°.
Use and to choose whether the
measurement for I
Δn
x5 with the initial
phase of 180° is to be performed („yES”) or
switched off („no”).
Use and
to go to the selection
screen of PRCD type.
Use
and to choose whether the
measurement is to be conducted for the
standard PRCD type ('Stdn') or for the 'S'
type ('safety'). The RCD-S (also known as
SPE-PRCD) types additionally disconnect
(monitor) the PE conductor, approved for
use in some countries.
or
Press
ENTER
to confirm settings or
press ESC to exit without saving
the changes.
Press START/STOP button. The meas-
urement of resistance of protective con-
ductor will commence.
connect the tested device according to the diagram below .
