SONOSAX SX-R4 + User manual / Hardware description Page 5 of 12
3. HARDWARE DESCRIPTIONS

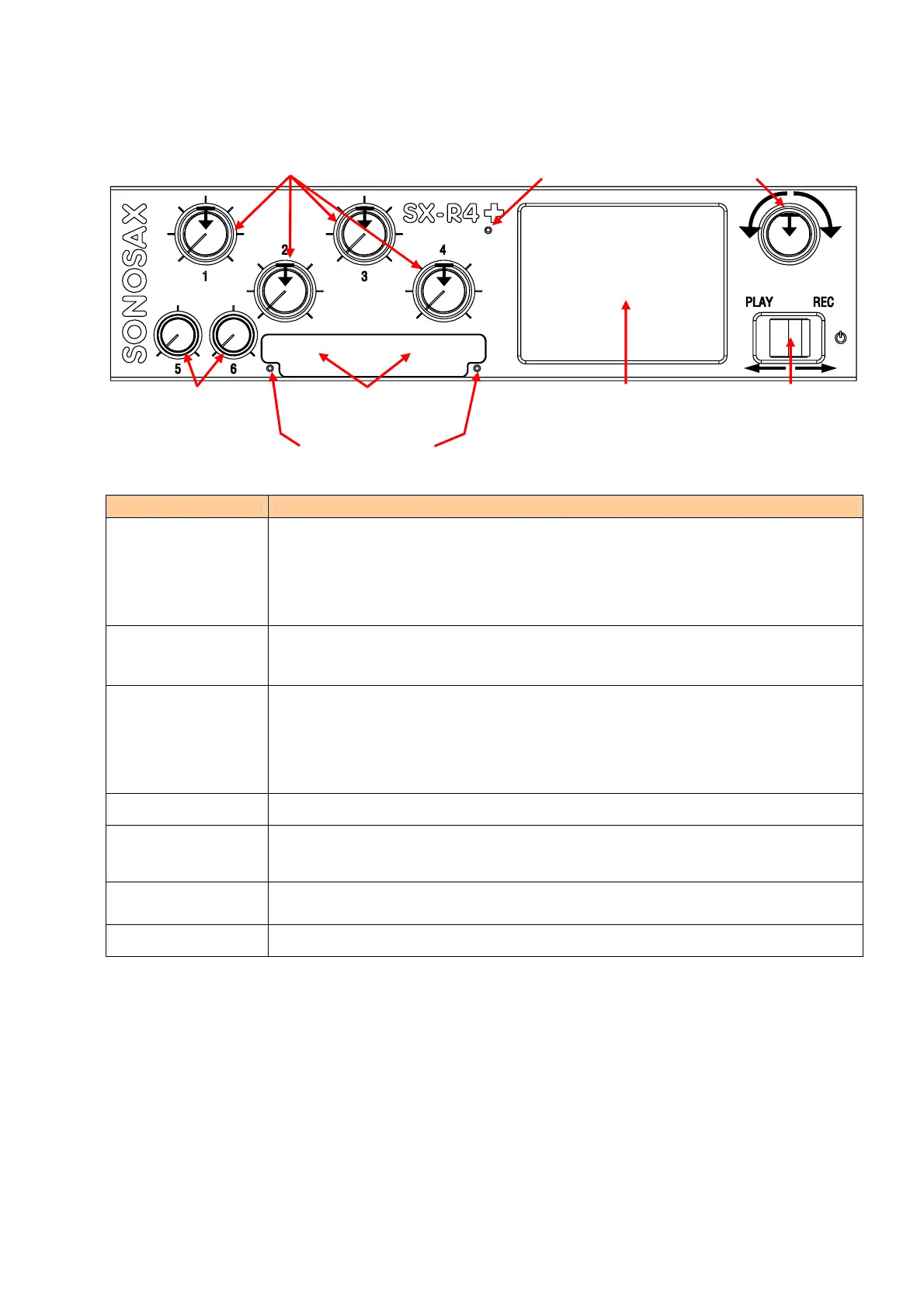

3.1 FRONT PANEL
FEATURES FUNCTIONS / DESCRIPTION
Faders 1 to 4
Push-On switch 1 - 4
Volume control of XLR's inputs 1 to 4 (controlling the DSP)
• Primarily assigned to XLR inputs 1 to 4, either set as analogue or digital input
• Fader range adjustable by menu
Switches with two programmable functions selected by a short press or a long press
• Read the User interface manual for further information
Faders 5 & 6 Retractable potentiometer with a function switch
• Analogue volume control dedicated to Line inputs 5 & 6 on TA-3
• Read the User interface manual for further
Headphone Encoder
Push-On switch
Multifunction encoder with push-on switch,
• Primarily controls the headphones volume
• Scroll specific functions or values according to displayed contextual menu
Switches with two programmable functions selected by a short press or a long press
• Read the User interface manual for further information
Toggle Switch Primarily dedicated for Record and Playback functions
SD Card slots Accepts SD/SDHC/SDXC cards, High speed class 10 cards are recommended. Press to
insert with notched corner oriented toward the right. Press to eject.
Push protection cover firmly in place to avoid dust and water ingression
SD Card status Led The Led's indicate the status of the SD Cards
• Read the User interface manual for further information
Color Touch Screen Touch the screen to call and navigate sub-menus
Rotary faders controlling XLR input 1 to 4
with programmable push-on switches
Headphone volume / Encoder
with programmable push-on switch
Rotary faders controlling
Line Inputs 5 & 6, with
programmable switch
Primary and Secondary
SD Card slots under
protection cover
Color TFT Display
with Touch Screen
Toggle Switch
--> Power ON
--> REC --> INDEX
-->> REC-STOP
<-- PLAY <-- PAUSE
<<-- PLAY-STOP
SD Card status Led's
Light Sensor
