S2/S2BW
Digital Color Doppler Ultrasound System
2. Attach the connector of the power cable to the AC adapter firmly.
3. Connect the power plug of the AC adapter to the outlet marked with “hospital grade”.
4.
Connect the DC output plug into the power supply socket on the ultrasound system. The system
automatically charges the battery and takes the AC supply as source.
Attention!
•
Make sure to follow the above steps. Connecting the DC output plug of the AC adapter, which
has no AC input, into the system can trigger protection mechanism which automatically shuts
down the system.
•
If auto-shutdown due to misoperation occurs, connect to the AC source and restart the system.
• Charge the battery only when the ambient temperature is between 0°C and 45°C.
•
When you hear the beep sound and the LED
BAT
is blinking, it means that the battery power
is almost depleted. You should save your data and turn off the system or connect the system
to an AC power source immediately.
Note
Once the system is turned on, the control panel will be illuminated. It takes about 1
minute for the system to enter the preparation mode (EXAM screen).
Attention!
DO NOT plug in any external USB drive before the system startup completes, otherwise the
µ
SCAN
function might be interrupted.
4.2.3 LED Indicators
The three Light-Emitting Diodes (LEDs), shown in
Figure 4.2
, indicate the power supply status and the battery
status. Their indications are listed in Table 4.1 and Table 4.2.
BAT CHG
Battery
indicator
Charge
indicator
AC adaptor
indicator
POR
LED
indicators

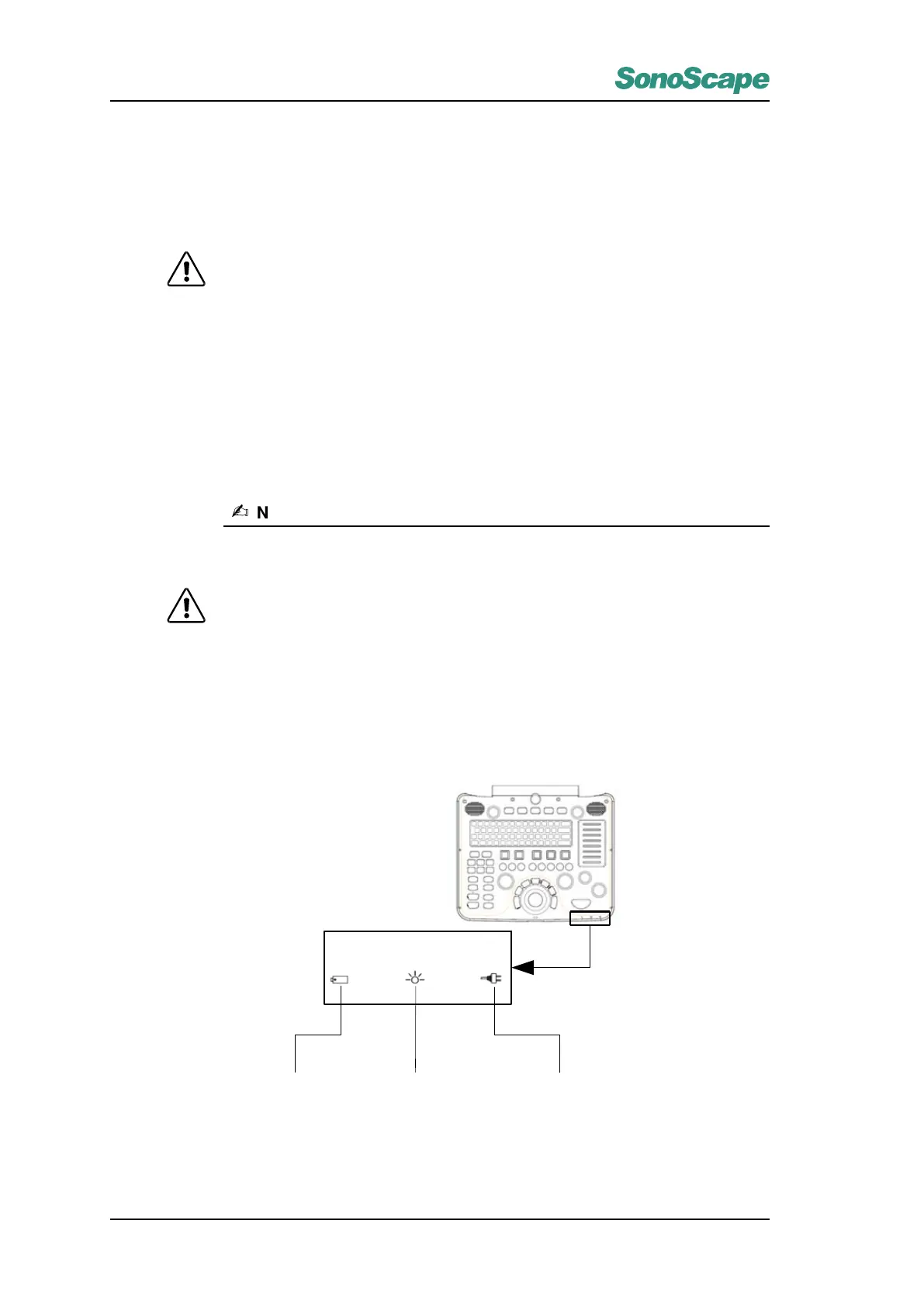

Figure 4.2: LED Indicators
P/N: 4710.00149A01
4-4
