S2/S2BW
Digital Color Doppler Ultrasound System

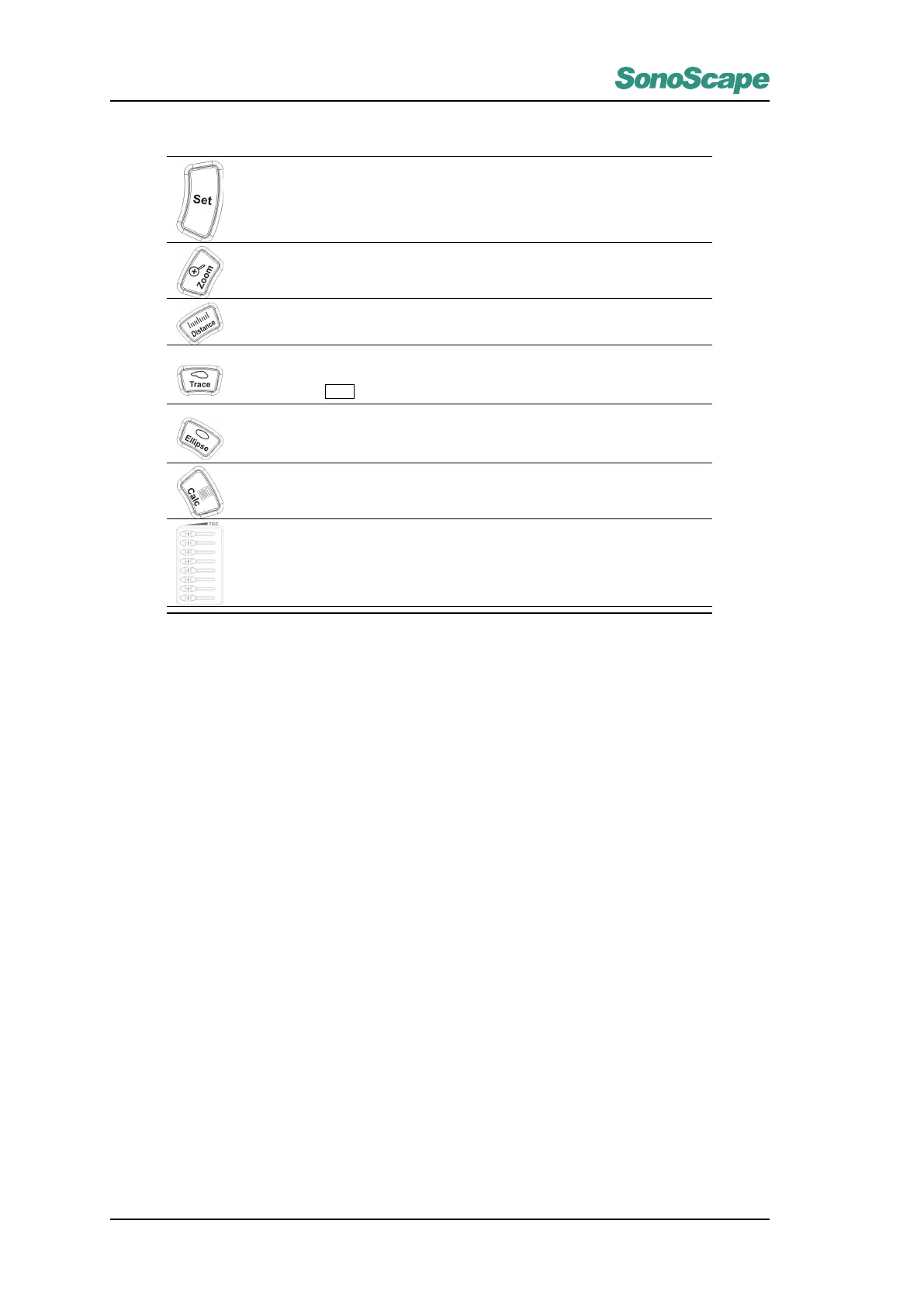

Key
Description of the Usage
SET
this key serves as the confirmation key.
to set, fixate markers and activate buttons/items marked by the cursor.
ZOOM
zoom ultrasound image.
DISTANCE
measure the distance between two points.
TRACE
press this key and move the trackball to draw a trace on the ultrasound
image; press
SET
to close the trace.
ELLIPSE
press this key and move the trackball to draw an ellipse on the ultrasound
image.
CALC
press this key to activate the measurement menu.
TGC
slide the TGC control to change the gain in the corresponding 2D depth.
3.3 Probes and Accessories
Supported Transducers: see Table 13.1.
Supported Peripherals and Accessories
• Video printers
• Network printers
• PC/workstation for accessing/reviewing ultrasound images
• USB2.0 removable disk drives
• Foot switch
• ECG electrodes and ECG cable
• Ultrasound coupling gel
3.4 Physical Specifications
Weight: approximately 13kg
Dimensions: 400mm X 350mm X 230mm
P/N: 4710.00149A01
3-8
