S2/S2BW
Digital Color Doppler Ultrasound System
Chapter 4
Starting the System
4.1 Probe Connection
Attention!
• Prior to connecting or disconnecting a probe freeze the image or back to EXAM screen.
• It is unnecessary to switch the unit off.
Instructions:

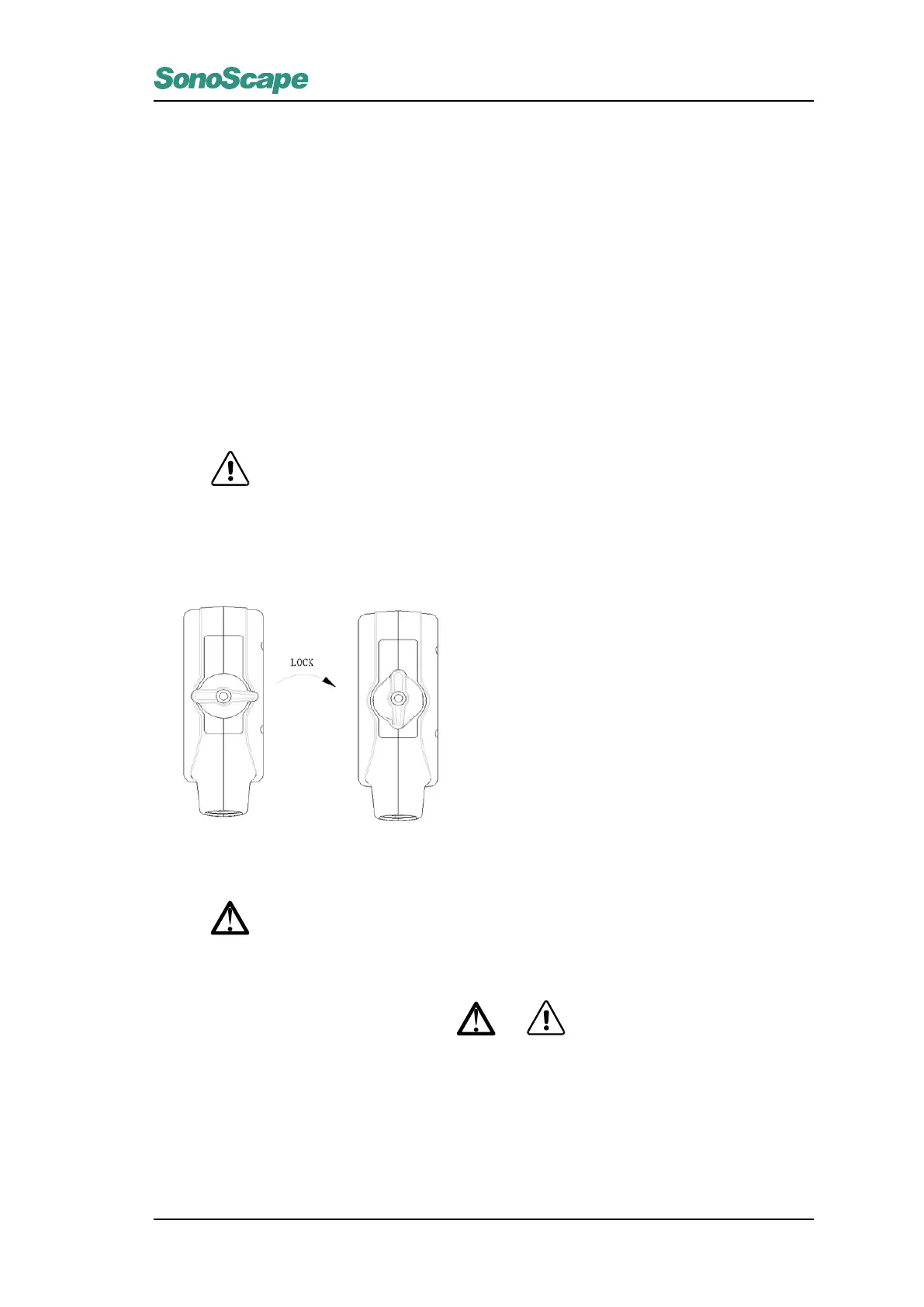

• Plug the probe into the probe socket.
• Switch the lock clockwise to vertical direction to
lock the probe.
• If the cable is too long, you may hang it on the
cable hook at the right side panel.
4.2 Power On and Off
Warning!
Review
Section 2.7
and
Section 2.8
for the detailed electrical requirements and for the electrical
safety.
Important!
Read messages below and carefully before starting up your system.
In order to avoid unnecessary electric hazards, it’s recommended to connect the equipotential point to earth
even when operating with the battery.
4.2.1 Using AC Supply
The ultrasound system can be powered by means of two different power sources:
- the AC power through the AC adapter, and
P/N: 4710.00149A01
4-1
