6.3 Other B Mode Operations
6.3.1 Freeze
Use
Freeze
to switch between real-time mode and freeze mode.
Operation:
• Press
Freeze
Key in real-time scanning mode to freeze the image and stop scanning;;.
• Press
Freeze
Key in freeze mode to activate scanning.

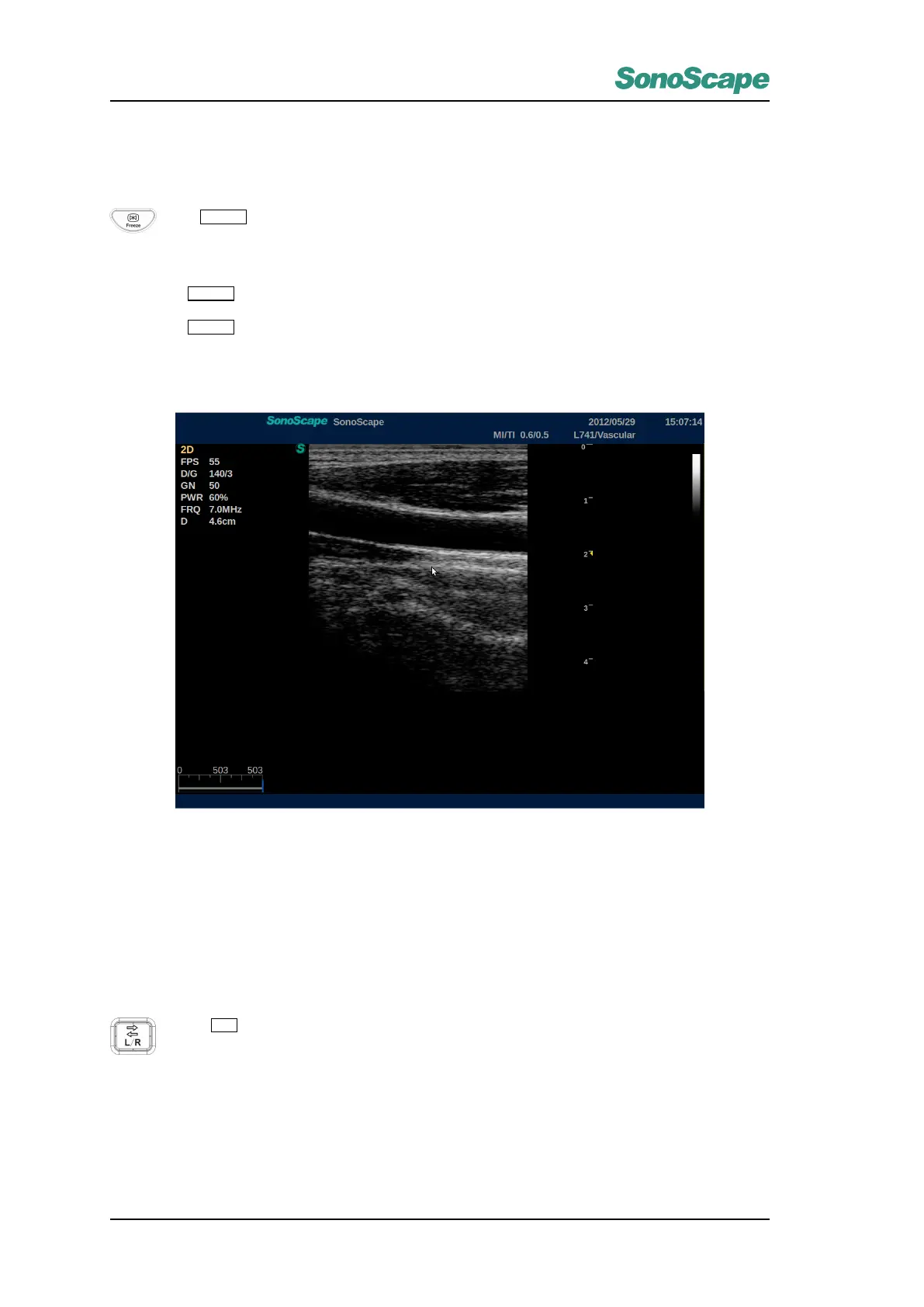

Freeze B-mode displays as follow
6.3.2 Image Orientation (Left/Right)
The key is used to flip the image on screen left/right rapidly without changing the direction of tranducer, and
switch the image of left and right side in Dual-B mode.The horizontal display direction of ultraosound image is
the position of ultrasound image where the first element of transducer places. The direction mark reflects the
actual direction.
Operation:
Press
L-R
Key to flip the image left or right once
