S2/S2BW
Digital Color Doppler Ultrasound System
2.
Press
L/R
key, to freeze the B-mode image on the left and switch to a active B-mode image on the
right;
3.
Press
L/R
again, to switch between the left image andthe right image, when the current image is
active, the transducer marker is displayed in green;
4. Press
Dual
again to quit Dual display.

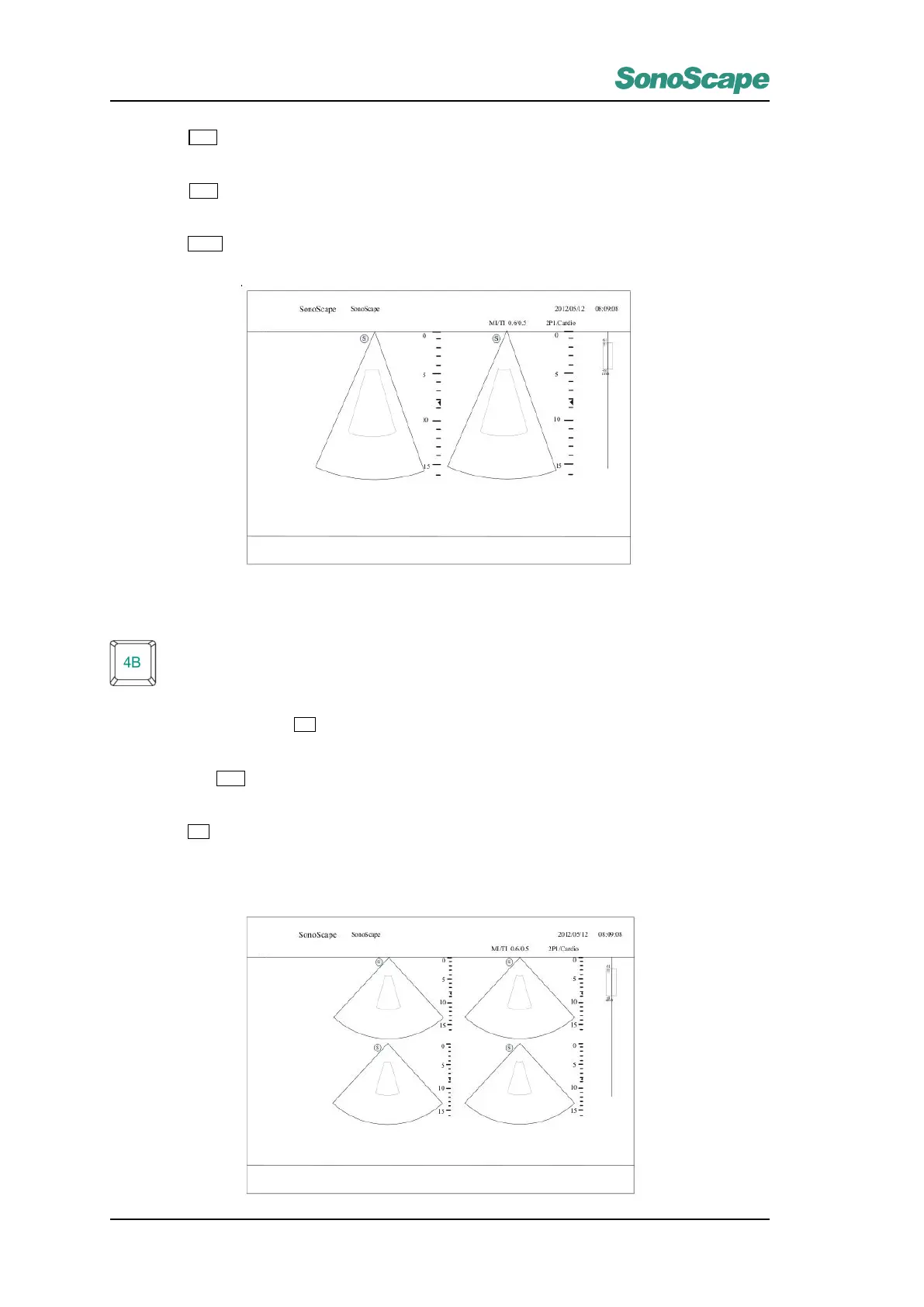

7.3.4 Quad Display
Use quad display to compare 4 images taken at different time on the same screen.
Operate:
1.
When in B mode, press
4B
key to activate quad display mode, now the image is reduced to 1/4 of it ˛a
´
rs
original size, and give space to other 3 images;
2.
Now press
L/R
key, to activate the top-left, top-right, down-left, down-right image, the transducer of the
activated image will displayed in color.
3. Press
4B
key again to quit quad display.
Quad Display is in this format:
P/N: 4710.00149A01
7-6
