BRC-300/300P
BRU-300/300P

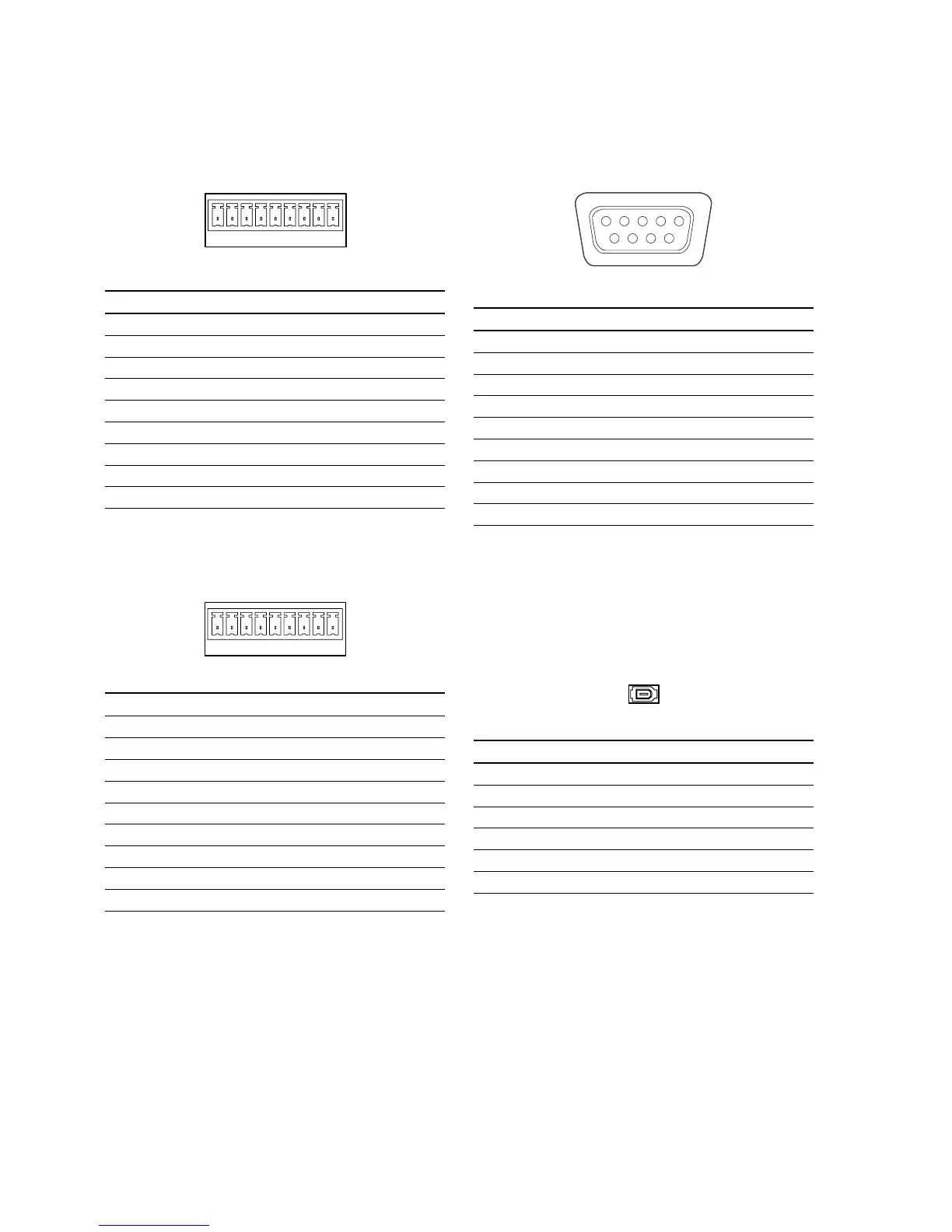

0 RGB/SYNC OUT : 9-pin (female)
(External view)
Pin No. Signal
1 RGB GND
2 RGB GND
3 R/R-Y
*1
4 G/Y
*1
5 B/B-Y
*1
6 VBS/Y
*2
7 SYNC
8 SYNC GND
9 Not used/C
*2
*1: Selectable with the OUTPUT 1 setting of ANALOG OUT menu.
RGB: R/G/B signal
YCrCb: Component video signal
*2: Selectable with the OUTPUT 2 setting of ANALOG OUT menu.
VBS: Analog composite video signal
Y/C: S video signal
!- DV OUT : 6-pin (i.LINK)
. IEEE1394
(External view)
Pin No. Signal
1 Not used
2 GND
3 TPB (_)
4 TPB (+)
5 TPA (_)
6 TPA (+)
123456789
8 VISCA RS-422 : 9-pin (Contact Terminal Block)
(External view)
Pin No. Signal
1 RXD OUT (_)
*
2 RXD OUT (+)
*
3 TXD OUT (_)
*
4 TXD OUT (+)
*
5 GND
6 RXD IN (_)
7 RXD IN (+)
8 TXD IN (_)
9 TXD IN (+)
*: RM-BR300/300P only: Not used
9 TALLY/CONTACT : 9-pin (Contact Terminal
Block)
(External view)
Pin No. Signal
1 CAMERA 1
2 CAMERA 2
3 CAMERA 3
4 CAMERA 4
5 CAMERA 5
6 CAMERA 6
7 CAMERA 7
8 Not used
9 GND
123456789
54321
