Sony BRC-300 - Tilt Motor

2-8
BRC-300/300P
BRU-300/300P
PSW2.6 x 6
PSW2.6 x 6
Motor plate
Tilt motor
PSW.SRW2.5 x 6
PSW.SRW2.5 x 6

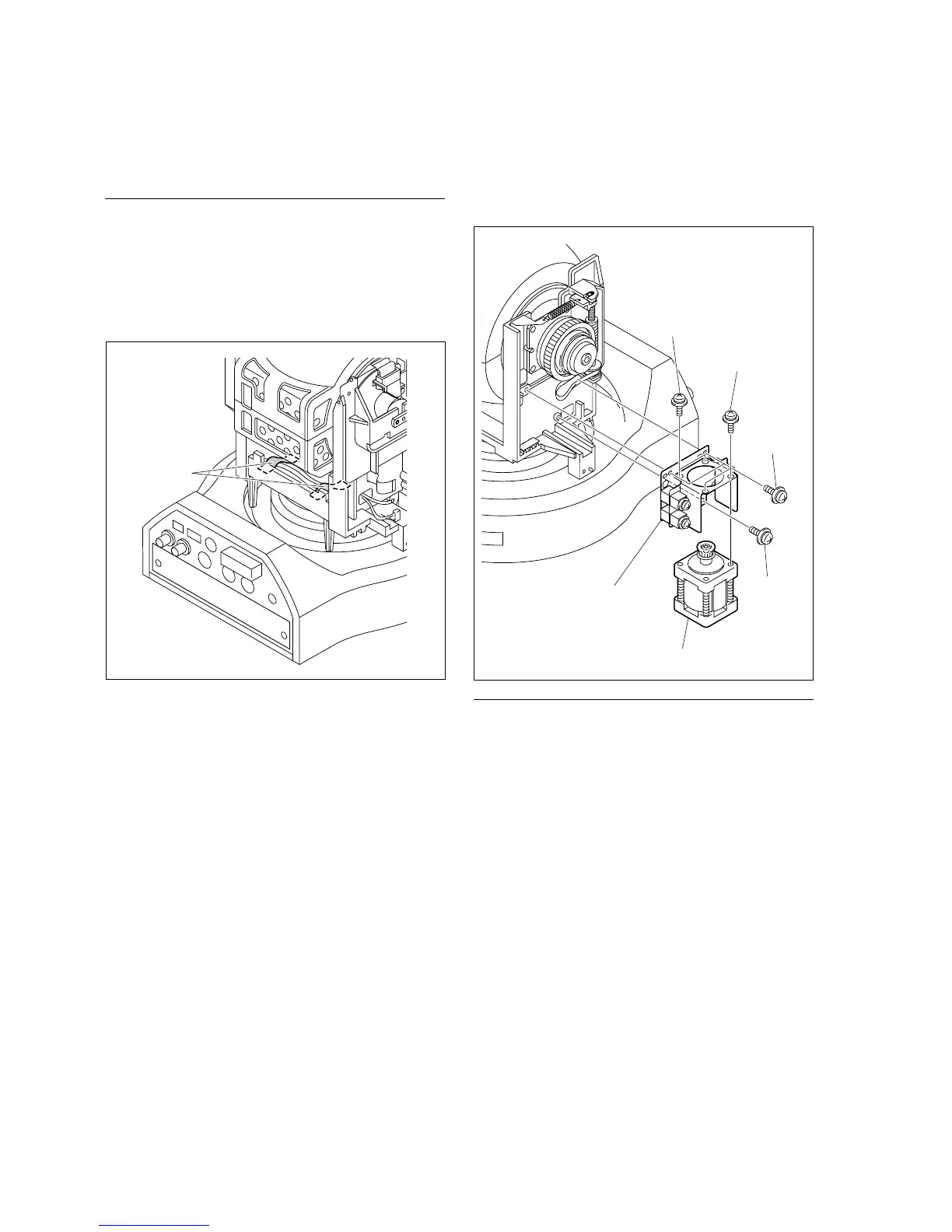

4. Remove the three screws, and remove the motor plate.
5. Remove the four screws, and remove the tilt motor
from the motor plate.
Installation
6. Reattach the tilt motor in the reverse order from steps
3 to 5.
m
. Pay attention not mix up the screws (PSW.SRW2.5
x 6) and the screws (PSW2.6 x 6).
. Replace the tapes A with new ones.
7. Reassemble the unit in the reverse order from steps 1
and 2.
Tapes A
2-1-6. Tilt Motor
Removing
1. Remove the side rear assembly and side front assem-
bly. (Refer to steps 1 to 3 in Section 1-3-1.)
2. Remove the DR-526 board.
(Refer to steps 2 and 3 in Section 2-2-5.)
3. Remove the two tapes A shown in the figure.
