Sony BRC-300 - Rm-Br300

1-21
BRC-300/300P
BRU-300/300P
1-7-3. RM-BR300
n
Never change the settings of the factory use switches.

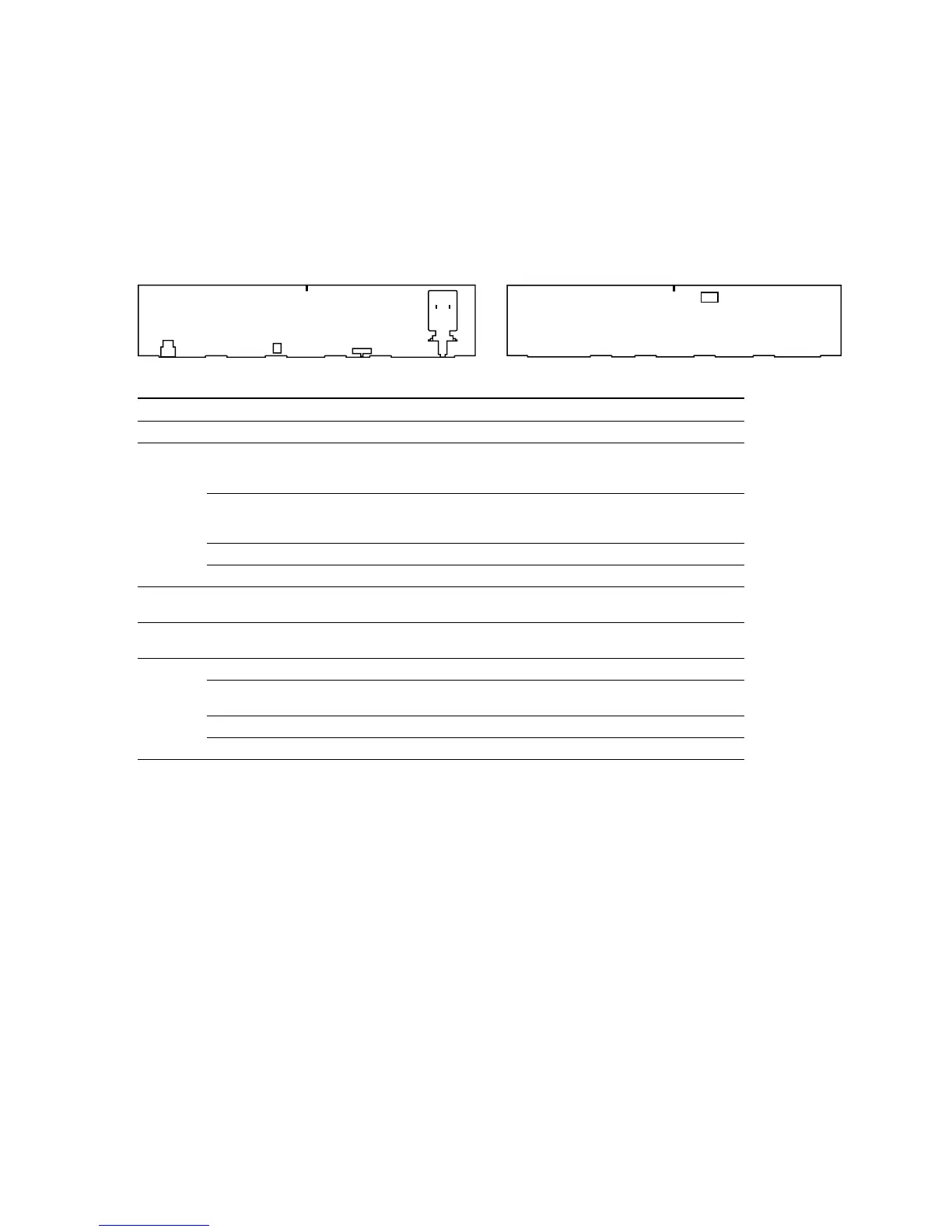

MD-131 Board
Ref. No. Bit Name Description Factory setting
S5001 — POWER ON/OFF Sets the unit power to ON or OFF. OFF
S5003 1 RS-232C/RS-422 Selects RS-232C or RS-422. OFF (RS-232C)
ON: RS-422
OFF: RS-232C
2 9600bps/38400bps Sets communication baud rate. OFF (9600 bps)
ON: 38400 bps
OFF: 9600 bps
3 — Not used OFF
4 — Not used OFF
S5004 — TALLY/CONTACT Selects the function of the TALLY/ CONTACT
CONTACT connector. (TALLY)
S5005 — MODE SELECT Set this switch according to the VISCA 0
correspondence camera to be connected.
S5006 1 ENABLE ON/OFF Factory use OFF
2 CPU WR MODE Set this to ON only when writing the OFF
firmware.
3 — Not used OFF
4 — Not used OFF
S5001
S5004
S5005
S5006
MD-131 BOARD (SIDE A)
S5003
MD-131 BOARD (SIDE B)
