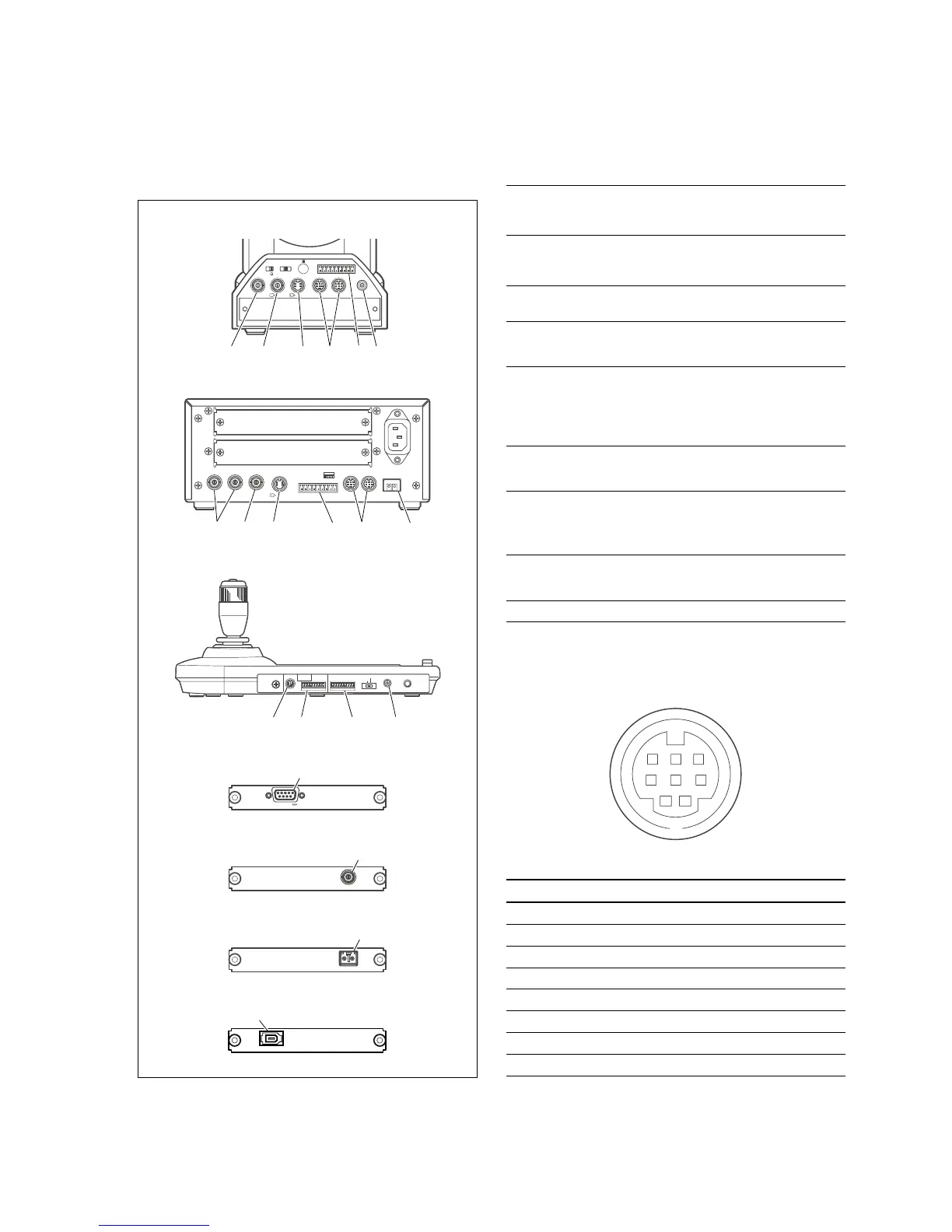

1-10. Signal Inputs and Outputs
BRC-300/300P
EXT SYNC IN
IR SELECT
75
1 2 3
OFF ON
IN VISCA RS-232C OUT
!
VISCA RS-422
1 2 3 4 5 6 7 8 9
DC IN
12V
R
VIDEO S VIDEO
2 1 684 7
IN EXT SYNC OUT
S VIDEO
VISCA RS-232C CAMERA
~
AC IN
IN OUT
VISCA RS-422
FUNCTION
1 6
2 1 4 8 57
BRU-300/300P
RM-BR300
BRBK-301
BRBK-302
BRBK-303
MODE
VISCA
1919
RS-422 ON/OFF
TALLY/CONTACT
RS-232C
CONTACT(TALLY)
!
TALLY
CONTACT DC IN 12V
7 8 9 6
RGB/SYNC
0
3
5
BNC Connectors
1 VIDEO OUT Analog composite video signal
1.0 V p-p, 75 Z, unbalanced, sync
negative
2 EXT SYNC IN External video sync signal
EXT SYNC OUT 0.3 V p-p, 75 Z, sync negative
(BRU-300/300P) (Black burst or composite sync)
3 SDI OUT Serial digital interface
Complies with SMPTE259
S Video Connector
4 S VIDEO OUT S video signal
Y = 1.0 V p-p, 75 Z, unbalanced,
sync negative
C (NTSC/PAL) =
0.286/0.3 V p-p, 75 Z, unbalanced
Optical Connectors
5 OPTICAL LC duplex fiber connector
(BRBK-303) Multi-mode 850 nm SFP transceiver
CAMERA Complies with SFP MSA
(BRU-300/300P)
Jack
6 DC IN 12 V UNREG +12 V DC
7 VISCA RS-232C IN : 8-pin (female)
VISCA RS-232C OUT : 8-pin (female)
(External view)
Pin No. Signal
1 DTR
2 DSR
3 TXD
4 GND
5 RXD
6 GND
7 Not used/SIRCS OUT
*
8 Not used
*: VISCA RS-232C IN connector of the BRC-300/300P only:
Selectable on the S1002-4/SY-314 board.
BRBK-304
1
35
4
68
7
2
To Next Page
