Sony BRC-300 - Board

2-23
BRC-300/300P
BRU-300/300P
LE-281 board
CN4951
PSW3 x 6
Hooks
Hooks
Front panel
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
CN-2548 board
Middle plate 2
Middle plate 1
Slot chassis
PSW3 x 6
PSW3 x 6

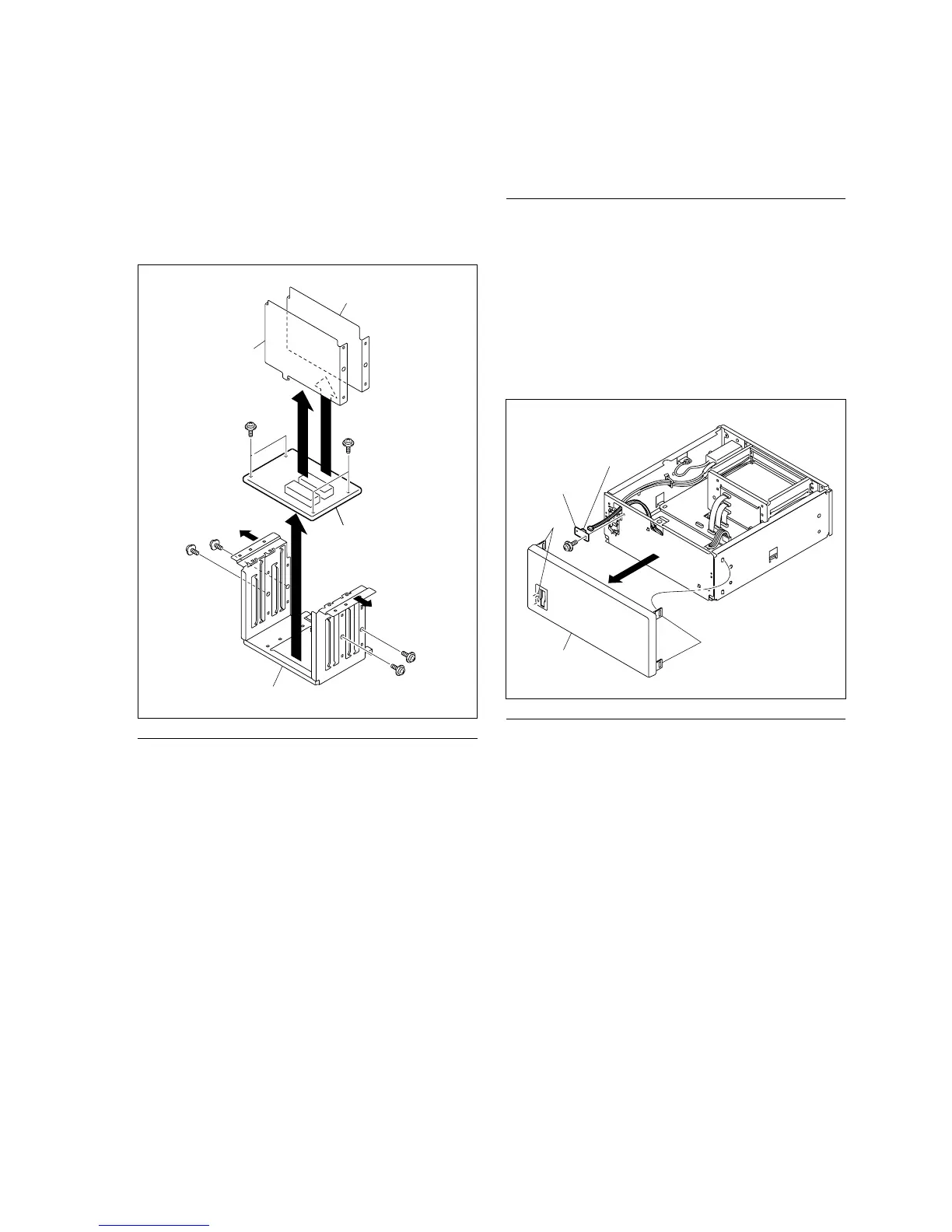

4. Remove the four screws, and remove the middle plates
1 and 2 while slightly extending the slot chassis
outward.
5. Remove the four screws, and remove the CN-2548
board.
Installation
6. Reinstall the CN-2548 board and slot assembly in the
reverse order from steps 2 to 5.
7. Reattach the cover panel.
(Refer to step 2 in Section 1-4-1.)
2-4-2. LE-281 Board
Removing
1. Remove the cover panel.
(Refer to step 1 in Section 1-4-1.)
2. Remove the four hooks on the front panel, and remove
the front panel.
3. Remove the screw, and remove the LE-281 board.
4. Disconnect the harness from the connector CN4951 on
the LE-281 board.
Installation
5. Reinstall the LE-281 board in the reverse order from
steps 2 to 4.
6. Reattach the cover panel.
(Refer to step 2 in Section 1-4-1.)
