Sony BRC-300 - Worm Gear Assembly (Pan)

2-9
BRC-300/300P
BRU-300/300P
PSW2.6 x 6
Base cabinet assembly
Worm base B
Holder T2
Holder T3
Plate T4
PSW2.6 x 6
Pin
Gear press spring
Hook
Worm gear assembly (pan)
Wave washers
Drive geart T
Base cabinet assembly

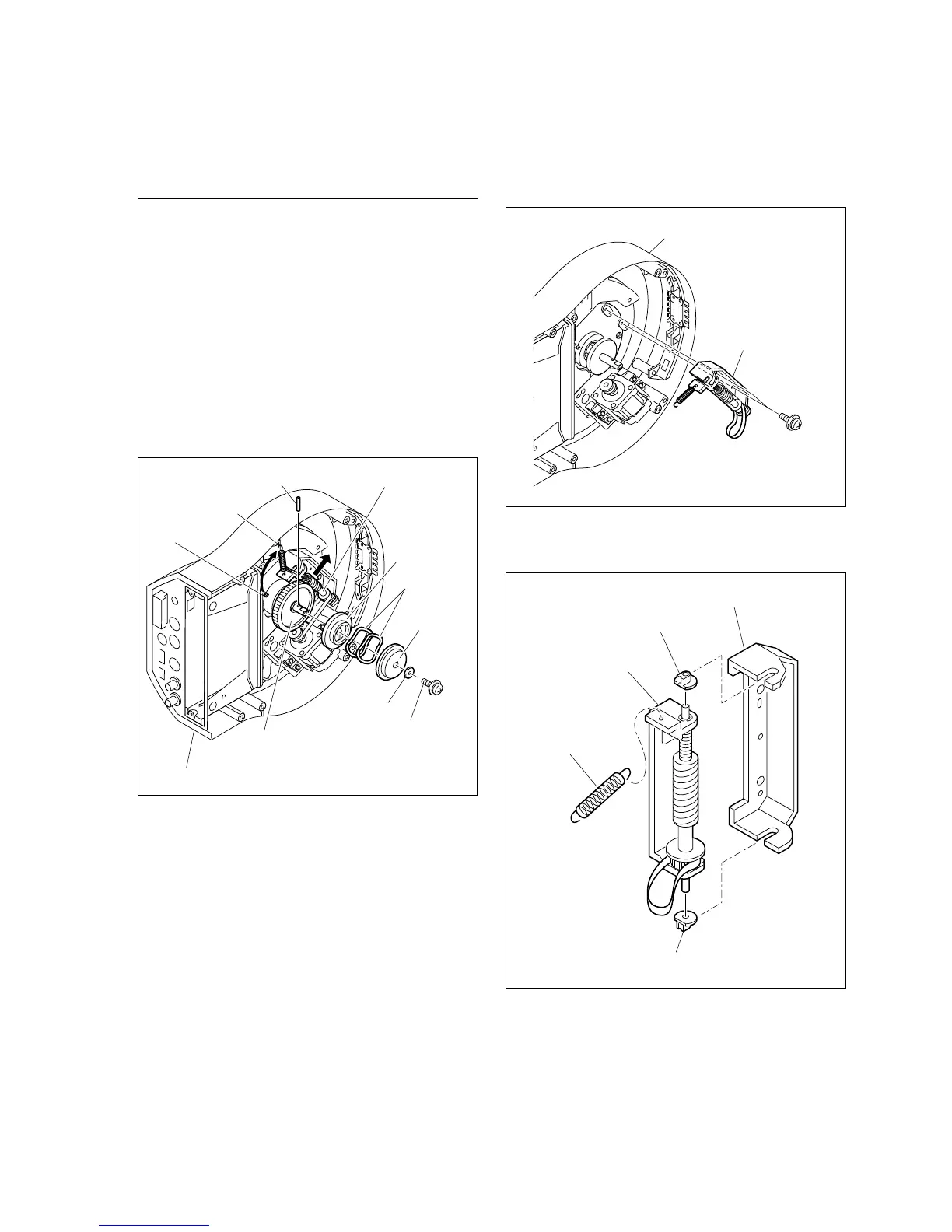

2-1-7. Worm Gear Assembly (Pan)
Removing
1. Remove the base plate. (Refer to Section 1-3-4.)
2. Remove the SY-314 board.
(Refer to steps 2 to 4 in Section 2-2-11.)
3. Release one end of the gear press spring from the hook
of the base cabinet assembly.
4. Remove the screw, and remove the plate T4, holder
T3, two wave washers and holder T2 from the shaft of
the base cabinet assembly.
5. Pull out the pin from the shaft of the base cabinet
assembly, and remove the drive gear T.
6. Remove the two screws, and remove the worm base B
from the base cabinet assembly.
7. Remove the worm base B, gear press spring and two
holders W3 from the worm gear assembly (pan).
Holder W3
Holder W3
Worm base B
Worm gear assembly
(pan)
Gear press spring
