Chapter 2 Location and Function of Parts
2-12 Chapter 2 Location and Function of Parts
2-1 Control Panels
• 525, 625: The indicator showing the number of
scan lines for the television standard selected
using basic menu item 013 lights (NTSC: 525
scan lines, field frequency 60 Hz; PAL: 625 scan
lines, field frequency 50 Hz).
• DOLBY NR indicator: This lights when the Dolby
noise-reduction
1)
circuit is functioning.
• EVENT indicator: This lights when an event is
displayed in the event display area.

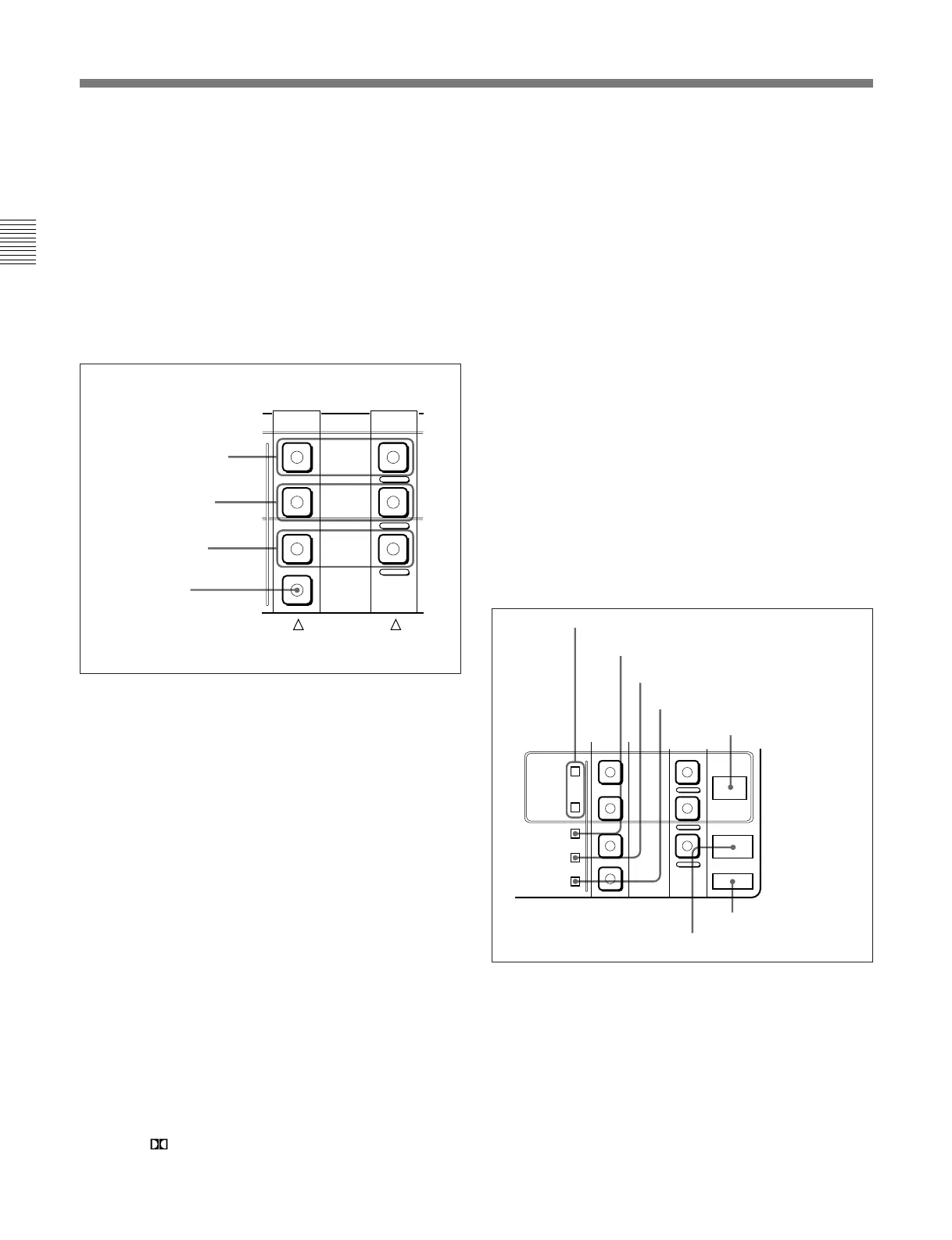

2 Device specification buttons
DISK PROGRAM buttons
When using the hard disk of this unit for nonlinear
editing, specify the hard disk as player or recorder.
According as you wish to specify the hard disk as
player or recorder, hold down the PLAYER or
RECORDER button and press the DISK PROGRAM
button on the PLAYER side or RECORDER side,
turning it on.
The device selected by pressing these buttons is also
referred to simply as “PROGRAM”.
PLAYER RECORDER
EXT
DISK
MASTER
DISK
PROGRAM
TAPE
Player side Recorder side
EXT button
DISK PROGRAM
buttons
DISK MASTER
buttons
TAPE buttons
DISK MASTER buttons
When using the hard disk of this unit for recording or
playing back material before editing, specify the hard
disk as player or recorder. According as you wish to
specify the hard disk as player or recorder, hold down
the PLAYER or RECORDER button and press the
DISK MASTER button on the PLAYER side or
RECORDER side, turning it on.
The device selected by pressing these buttons is also
referred to simply as “MASTER”.
TAPE buttons
To specify the VTR of this unit as player or recorder,
hold down the PLAYER or RECORDER button and
press the TAPE button on the PLAYER side or
RECORDER side, turning it on.
EXT (external) button
To specify the device connected to the REMOTE-
IN(9P) connector as player, hold down the PLAYER
button and press this button, turning it on.
3 Indicators
BETACAM
SX
ALARM
DISK
BUSY
EXT
DISK
MASTER
DISK
SERVO
REC
INHIBIT
KEY
INHIBIT
FULL
EDIT
SIMPLE
EDIT
PROGRAM
TAPE
FULL EDIT/SIMPLE EDIT indicators
REC INHIBIT indicator
KEY INHIBIT indicator
SERVO indicator
DISK BUSY indicator
ALARM indicator
BETACAM SX indicator
1) Dolby noise-reduction: Dolby noise reduction
manufactured under license from Dolby Laboratories
Licensing Corporation. “ DOLBY” and the double-D
symbol are trademarks of Dolby Laboratories
Licensing Corporation.
..........................................................................................................................................................................................................
To Next Page
