3. Remove the two screws (B4 x 8) on the right and left
side panels. (Be careful not to lose these four screws.)
4. Install the L-angles to the holes described in step 3
with the supplied screws (PSW4 x 16) in RMM-130
for these L-angles.
n
Never use screws PSW4 x 16 to install the right and left
side panels without L-angles. Be sure to use the screws
B4 x 6 removed in step 3. Screws for L-angles are longer
than ones for the side panels. Therefore, using the screws
PSW4 x 16 may cause trouble in the unit.

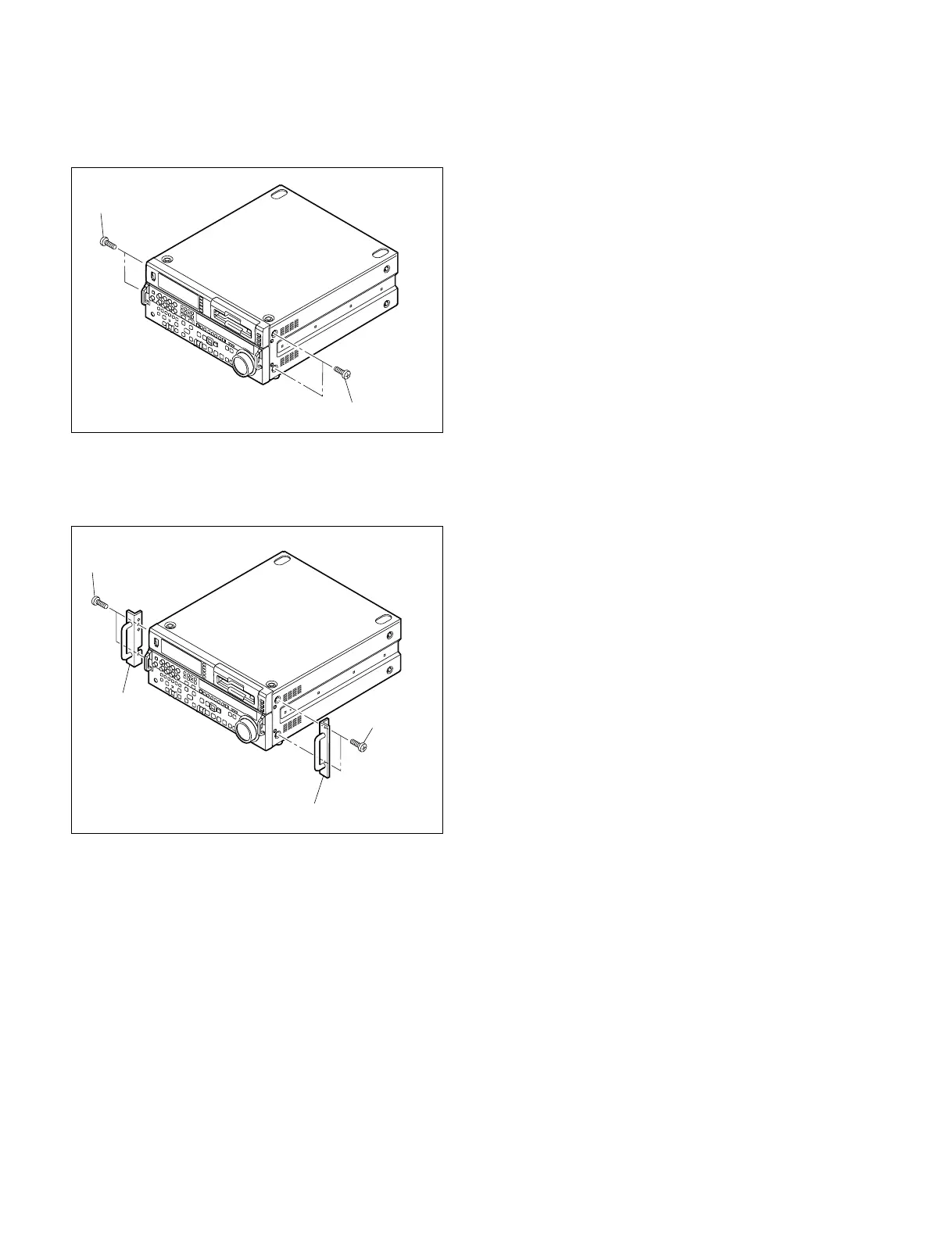

Screws (B4 x 6)
Screws (B4 x 6)
L-angle
L-angle
Screws
(PSW4 x 16)
Screws
(PSW4 x 16)
