Sony DSR-2000A - PB VIDEO out 3 Video Level Adjustment; PB S VIDEO out Y;Sync Level Check

10-11
DSR-2000A/2000AP
Specification
VIDEO OUT 3 (75 Z terminated)
TRIG : REF. VIDEO
Spec. A = 1.00 ±0.01 V (140.0 ±1.5 IRE)
A

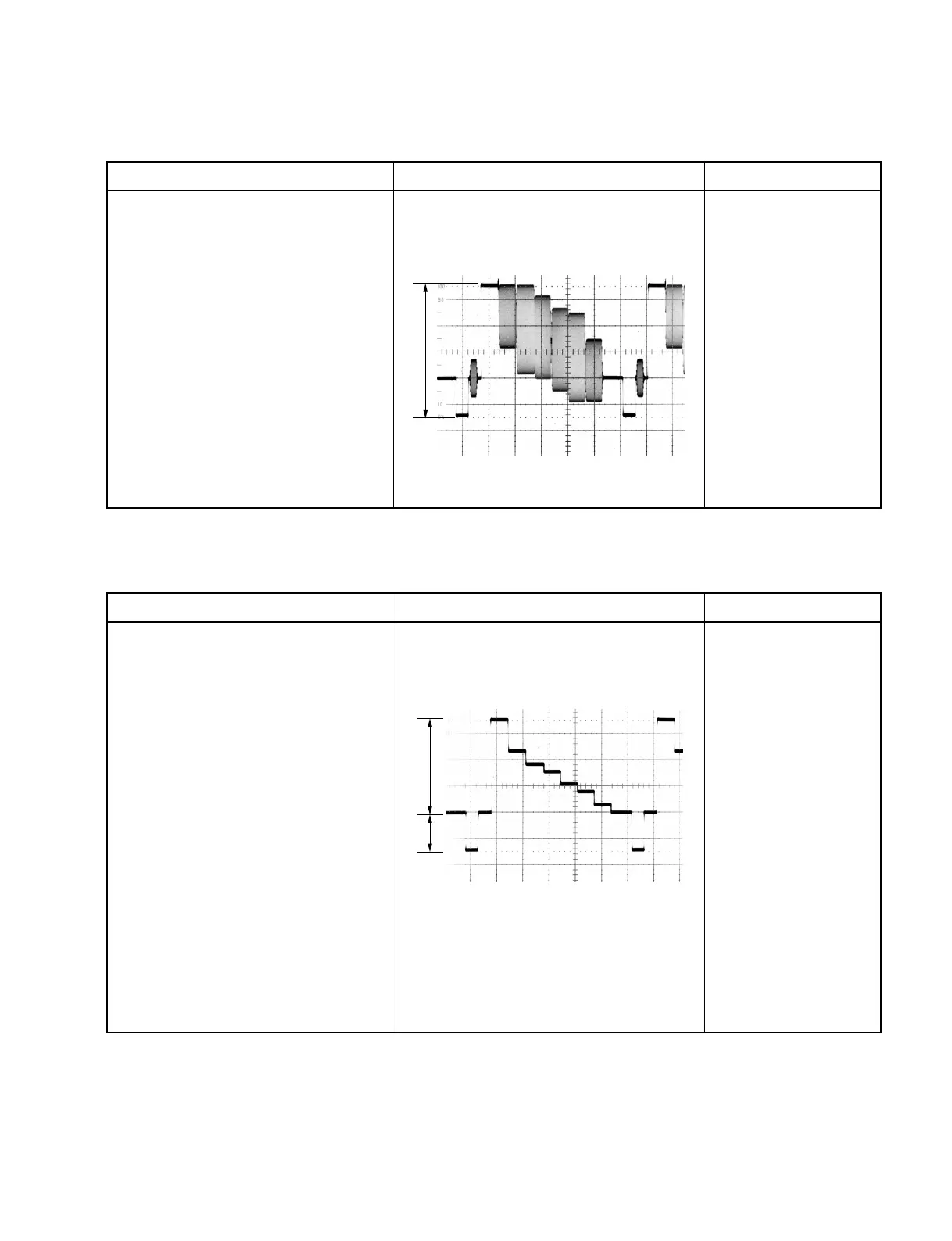

10-3-10. PB VIDEO OUT 3 Video Level Adjustment
Conditions for adjustment
WFM or Oscilloscope
. PB mode
75 % Color bars/XH5-1A2 (for NTSC)
100 % Color bars/XH5-1AP2 (for PAL)
Connection 2
Adjustment
1RV807/VPR-62A (M-4)
Specification
S VIDEO (Y) OUT (75 Z terminated)
TRIG : REF. VIDEO
Spec.
[For NTSC]
A = 0.714 ±0.007 V (100 ±1 IRE)
B = 0.286 ±0.003 V (40 ±0.5 IRE)
[For PAL]
A = 0.700 ±0.007 V
B = 0.300 ±0.003 V
A
B
Conditions for adjustment
WFM or Oscilloscope
. PB mode
75 % Color bars/XH5-1A2 (for NTSC)
100 % Color bars/XH5-1AP2 (for PAL)
Connection 2
10-3-11. PB S VIDEO OUT Y/Sync Level Check
Adjustment
