Sony DSR-2000A - HCK Frequency Adjustment; A;D Burst Level Adjustment

10-6
DSR-2000A/2000AP
Specification
TP604/VPR-62A (F-5)
Spec. f = 13,500,000 ±35 Hz
Conditions for adjustment
Frequency counter
. STOP mode
. REF. VIDEO IN ; No signal
. VIDEO IN Select ; Composite
. VIDEO IN ; No signal

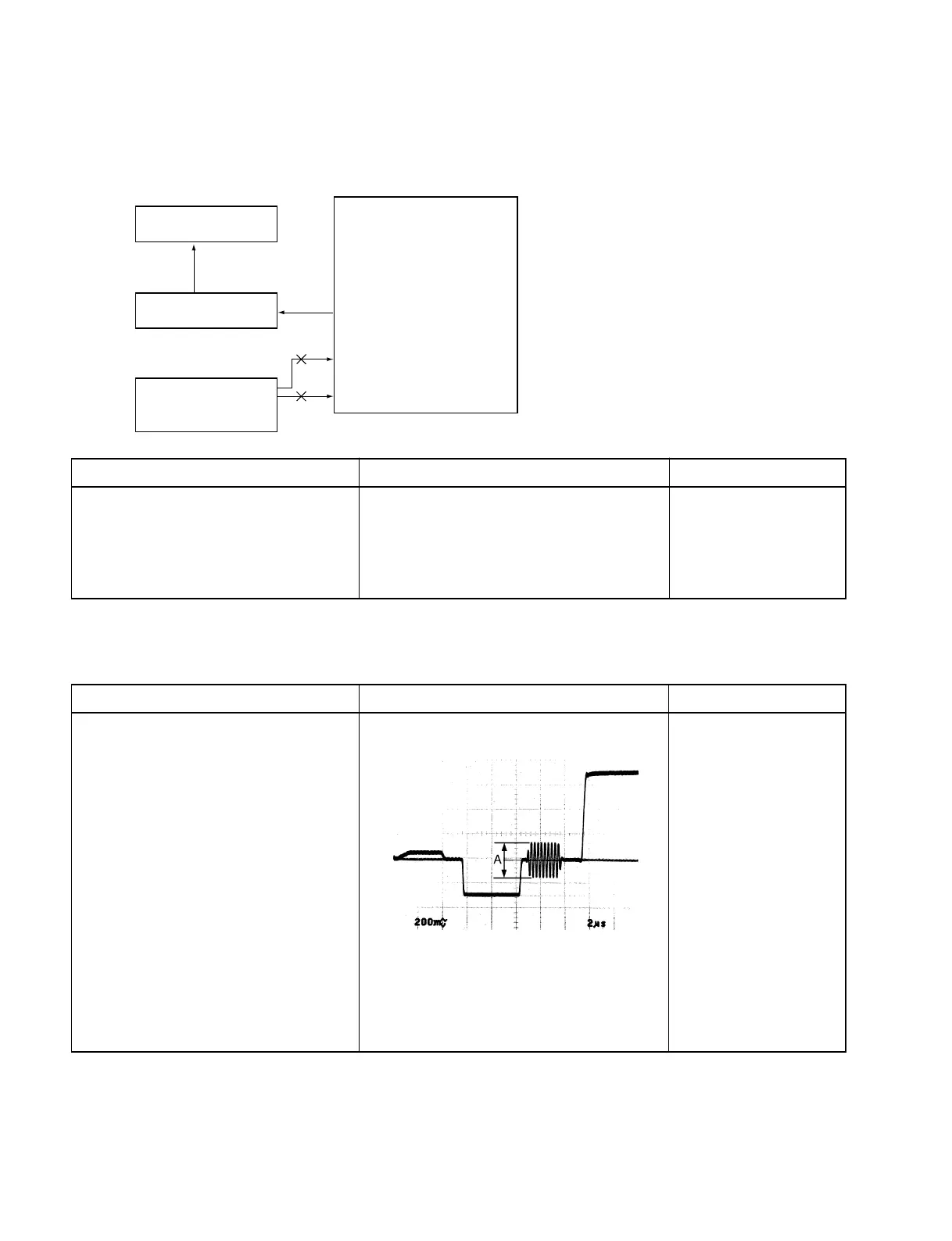

10-3-1. HCK Frequency Adjustment
(Connection)
Adjustment
1RV601/VPR-62A (F-4)
Oscilloscope
Frequency counter
Video signal generator
(NTSC : TSG-130A)
(PAL : TSG-131A)
TP
REF. VIDEO IN
VIDEO IN
DSR-2000A/2000AP
No. REF.
Conditions for adjustment
WFM or Oscilloscope
. PB mode
75 % Color bars/XH5-1A2 (for NTSC)
100 % Color bars/XH5-1AP2 (for PAL)
Connection 2
Specification
TP1001/VPR-62A (J-3)
Spec.
[For NTSC]
A = 1.90 ±0.01 V p-p
[For PAL]
A = 1.99 ±0.01 V p-p
Adjustment
1RV1001/VPR-62A (J-3)
10-3-2. A/D Burst Level Adjustment
