Sony DSR-2000A - REC COMPONENT B-Y Level Adjustment; REC COMPONENT R-Y Level Adjustment

10-16
DSR-2000A/2000AP
Conditions for adjustment
WFM or Oscilloscope
. EE mode
. VIDEO IN select ; COMPONENT
. COMPONENT IN ;
75 % Color bars (for NTSC)
100 % Color bars (for PAL)
Connection 1
Specification
COMPONENT R-Y OUT (75 Z terminated)
TRIG : REF. VIDEO

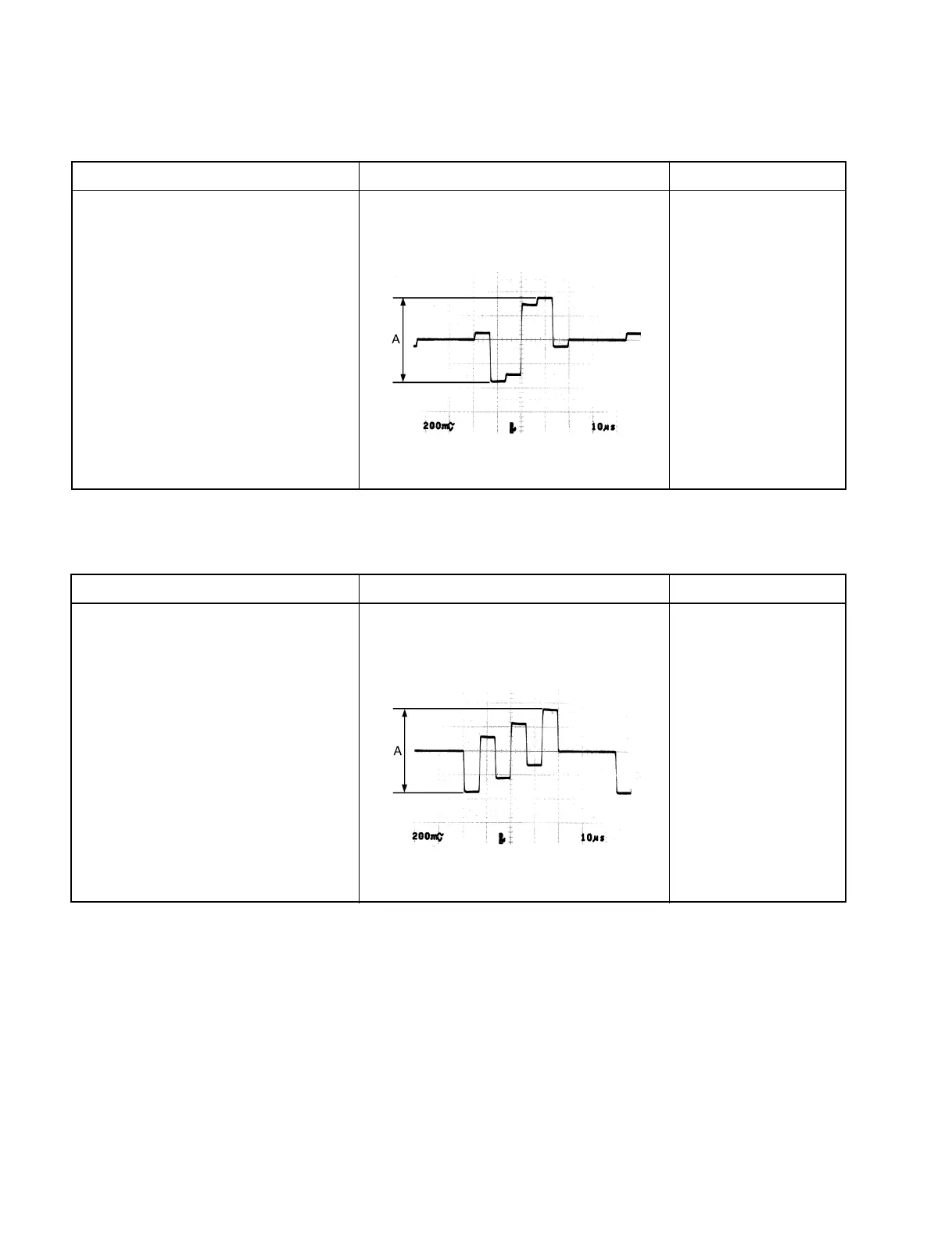

Spec. A = 0.700 ±0.007 V p-p (98 ±1 IRE)
10-3-17. REC COMPONENT R-Y Level Adjustment
Adjustment
1RV202/VPR-62A (P-4)
Conditions for adjustment
WFM or Oscilloscope
. EE mode
. VIDEO IN select ; COMPONENT
. COMPONENT IN ;
75 % Color bars (for NTSC)
100 % Color bars (for PAL)
Connection 1
Specification
COMPONENT B-Y OUT (75 Z terminated)
TRIG : REF. VIDEO
Spec. A = 0.700 ±0.007 V p-p (98 ±1 IRE)
10-3-18. REC COMPONENT B-Y Level Adjustment
Adjustment
1RV203/VPR-62A (P-4)
