Sony DSR-2000A - Removal;Installation of Cabinet

3-8
DSR-2000A/2000AP

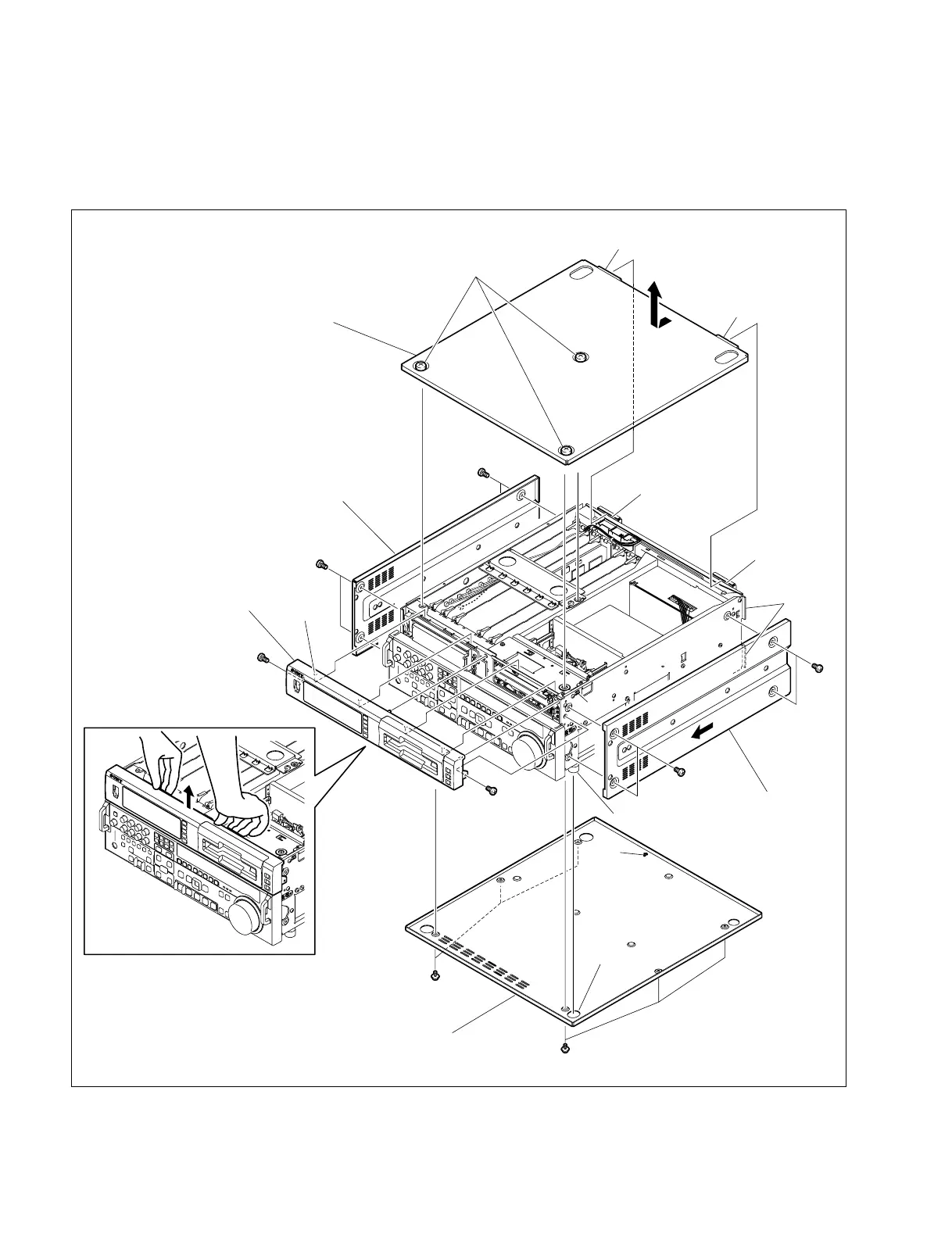

3-3. Removal/Installation of Cabinet
n
Turn off the power of the unit before starting removal/installation.
B4 x 6
B4 x 6
B4 x 6
B4 x 6
PWH3 x 6
PWH3 x 6
B4 x 6
Fixing screw
(with stopper)
Claw
Claw
Section A
Section A
Foot
Hole
Claw
Claw
Claw
Claws
Top panel
Left side panel
Right side panel
B3 x 6
B3 x 6
Bottom panel
Front panel
