Sony DSR-2000A - REF. VIDEO out Sync;Burst Level Adjustment; REC COMPONENT y Level Adjustment

10-15
DSR-2000A/2000AP
Specification

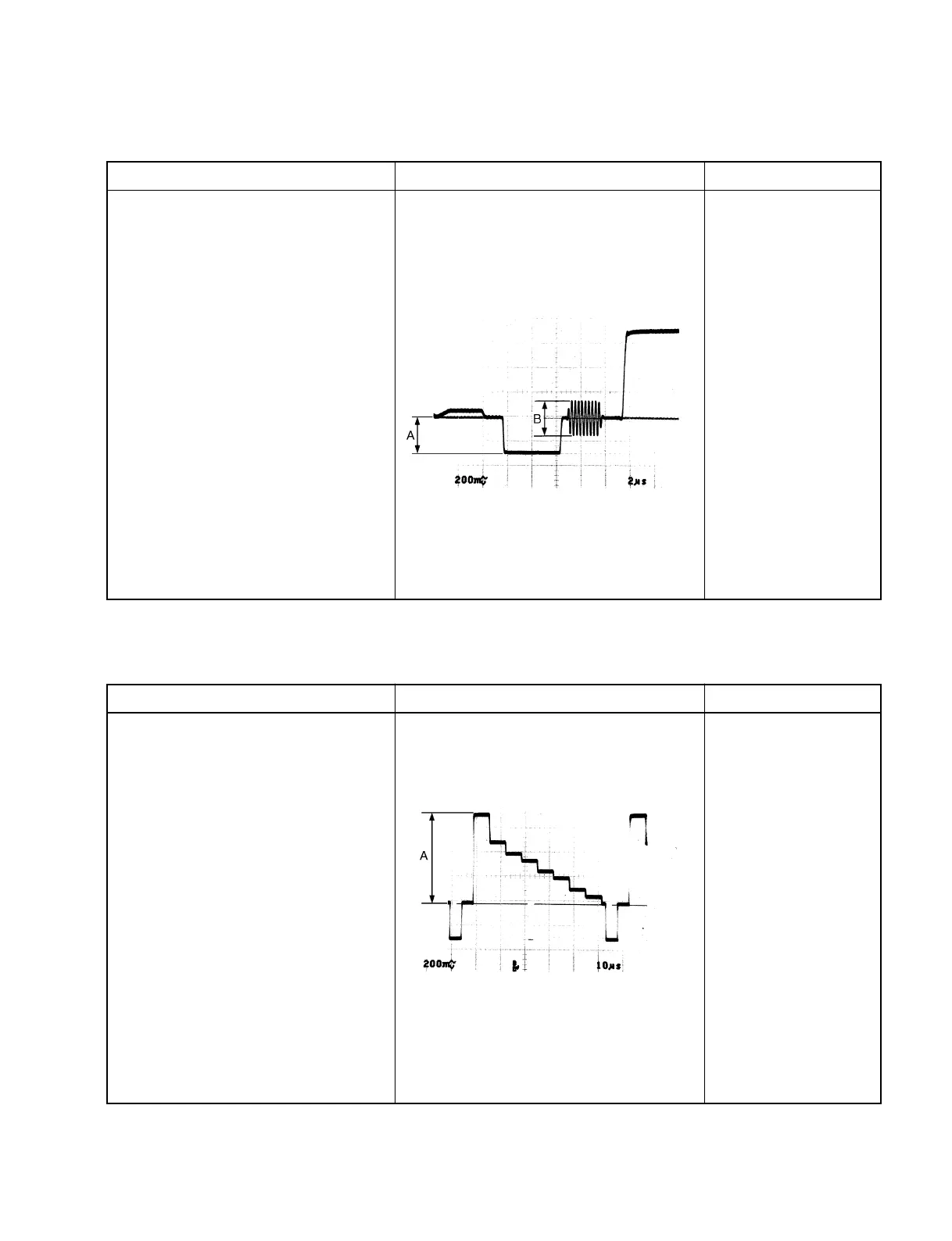

REF. VIDEO OUT (75 Z terminated)
(A) Sync Level
(B) Burst Level
TRIG : INT/WFM
Spec.
[For NTSC]
A, B = 0.286 ±0.003 V (40 ±0.5 IRE)
[For PAL]
A, B = 0.300 ±0.003 V
Conditions for adjustment
WFM or Oscilloscope
. PB mode
75 % Color bars/XH5-1A2 (for NTSC)
100 % Color bars/XH5-1AP2 (for PAL)
. REF. VIDEO INPUT ; No signal
. After adjustment is completed, re-connect
the REF. VIDEO INPUT.
Connection 2
10-3-15. REF. VIDEO OUT Sync/Burst Level Adjustment
Adjustment
1RV806/VPR-62A (K-3)
1RV808/VPR-62A (k-4)
Conditions for adjustment
WFM or Oscilloscope
. EE mode
. VIDEO IN select ; COMPONENT
. COMPONENT IN ;
75 % Color bars (for NTSC)
100 % Color bars (for PAL)
Connection 1
Specification
COMPONENT Y OUT (75 Z terminated)
TRIG : REF. VIDEO
Spec.
[For NTSC]
A = 0.714 ±0.007 V (100 ±1 IRE)
[For PAL]
A = 0.700 ±0.007 V
10-3-16. REC COMPONENT Y Level Adjustment
Adjustment
1RV201/VPR-62A (P-4)
