Sony DSR-2000A - PB VIDEO out 1 Chroma Level Adjustment; PB VIDEO out 2 Video Level Check

10-10
DSR-2000A/2000AP
Specification
VIDEO OUT 2 (75 Z terminated)
TRIG : REF. VIDEO
Spec.
[For NTSC]
A = 0.714 ±0.007 V (100 ±1 IRE)
B = 0.286 ±0.003 V (40 ±0.5 IRE)
C = 0.286 ±0.003 V (40 ±0.5 IRE)
[For PAL]
A = 0.700 ±0.007 V
B = 0.300 ±0.003 V
C = 0.300 ±0.003 V
B
C
A
Conditions for adjustment
WFM or Oscilloscope
. MENU ITEM 713-2, OUTPUT LEVEL ; 7.5 %
. PB mode
75 % Color bars/XH5-1A2 (for NTSC)
100 % Color bars/XH5-1AP2 (for PAL)
Connection 2
Specification
VIDEO OUT 1 (75 Z terminated)
TRIG : REF. VIDEO
Spec.
[For NTSC]
A = 0.627 ±0.007 V p-p (87.7 ±1 IRE)
[For PAL]
A = 0.885 ±0.006 V p-p

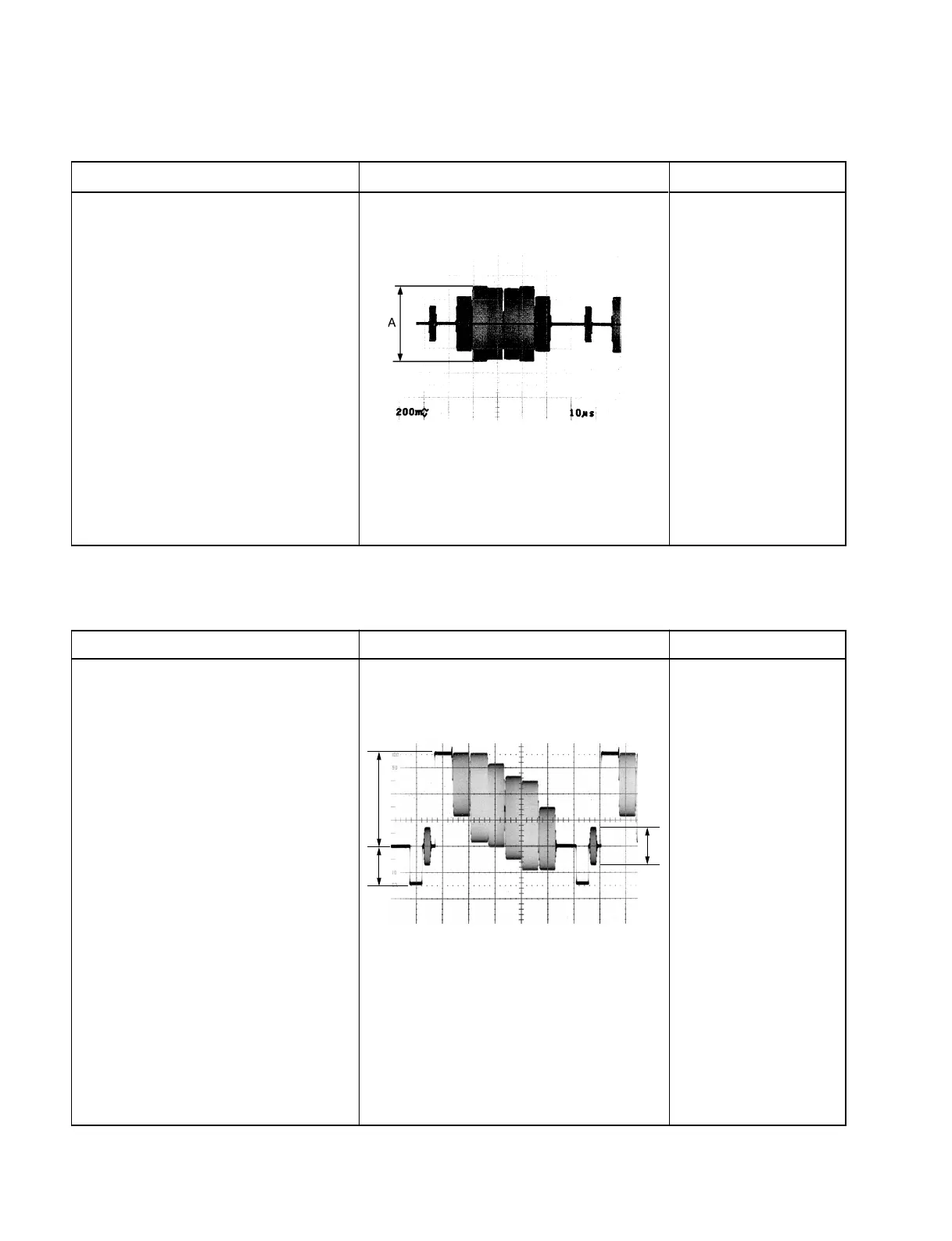

10-3-8. PB VIDEO OUT 1 Chroma Level Adjustment
Adjustment
1RV801/VPR-62A (M-3)
Conditions for adjustment
WFM or Oscilloscope
. PB mode
75 % Color bars/XH5-1A2 (for NTSC)
100 % Color bars/XH5-1AP2 (for PAL)
Connection 2
10-3-9. PB VIDEO OUT 2 Video Level Check
Adjustment
