Sony DSR-2000A - PB COMPONENT Y;C Delay Adjustment

10-14
DSR-2000A/2000AP
Specification
COMPONENT OUT (75 Z terminated)
TRIG : INT/WFM
Bowtie mode
Spec. Set the each Bowtie dip point of (A)
and (B) on the center marker.
0 ±10 ns

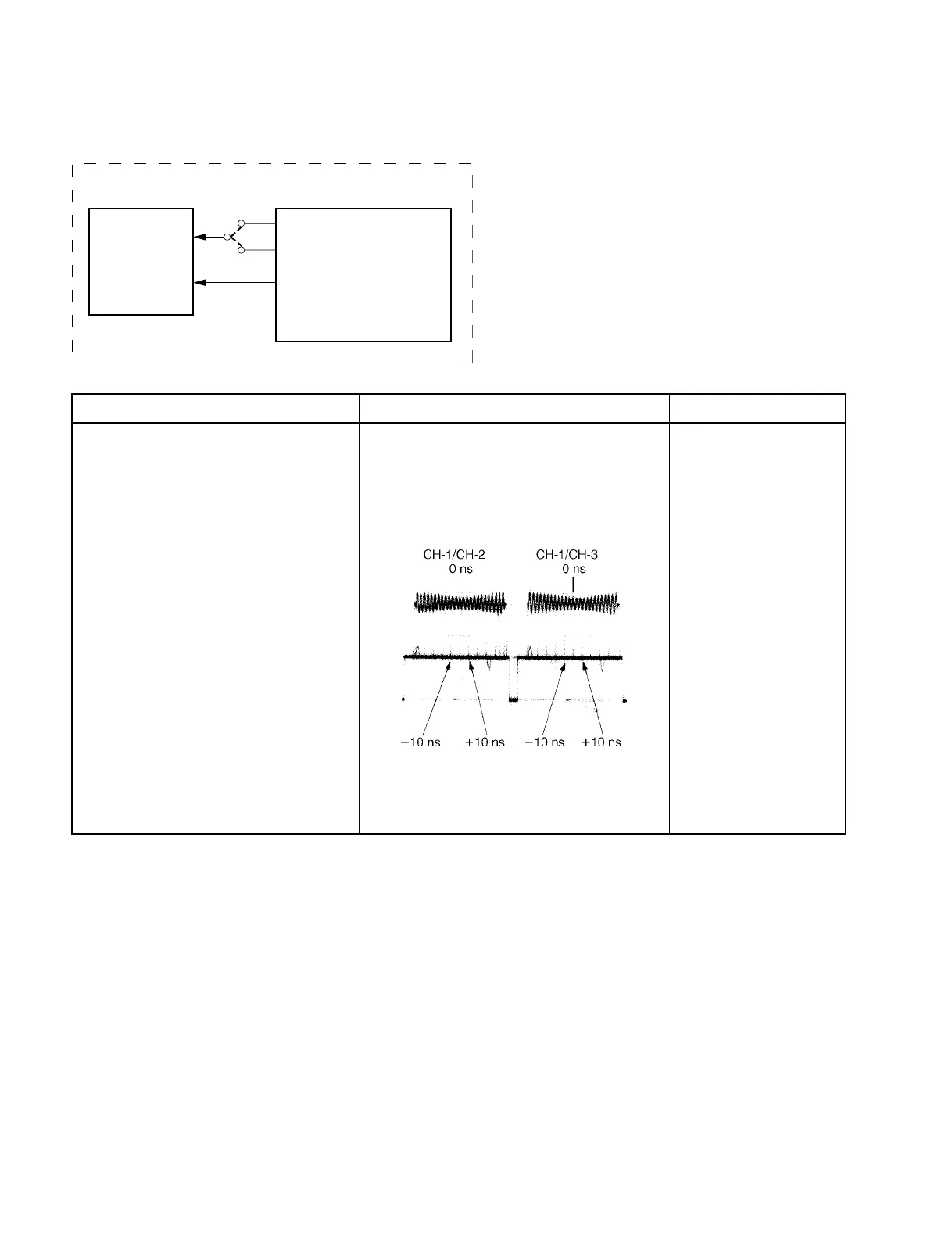

[Connection for reference] Using for an oscilloscope
DSR-2000A/2000AP
INV/ADD mode
TRIG : CH-1
CH-2
CH-1
COMPONENT R-Y OUT
COMPONENT B-Y OUT
COMPONENT Y OUT
Oscilloscope
Conditions for adjustment
. PB mode
Bowtie/XH5-1A2 or XH5-1AP2
(02:00-02:30)
Connection 1
10-3-14. PB COMPONENT Y/C Delay Adjustment
Adjustment
1RV502/VPR-62A (D-1)
