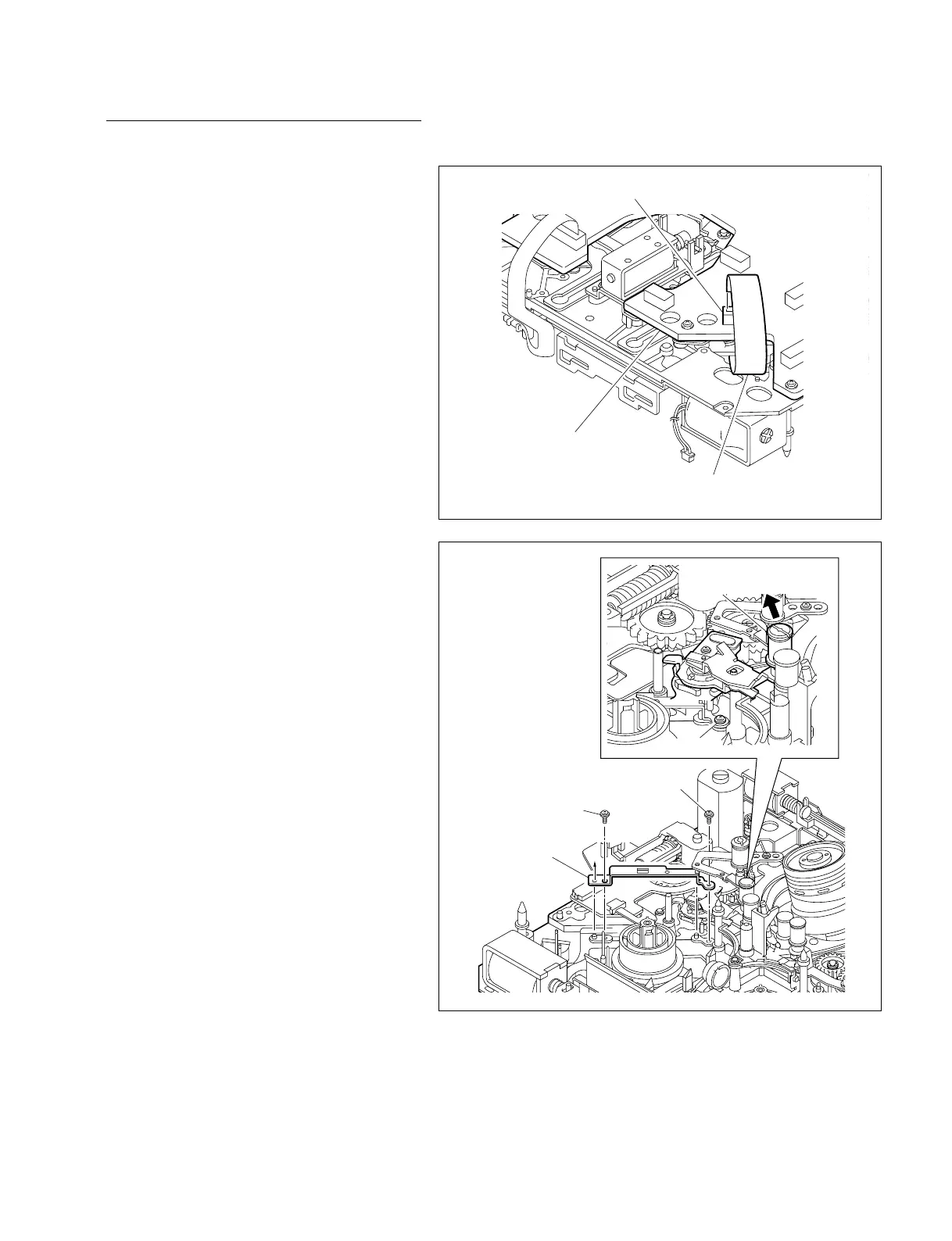

MS-64 board
S reel motor assembly
flexible card wire
Connector (CN11)
Replacement
1. Removing the MD cover
Remove the MD cover. (Refer to Section 7-2.)
2. Disconnecting the connector
Disconnect the flexible card wire from the
connector (CN11) on the MS-64 board located on
the back side of the MD chassis.
3. Moving the S/T reel tables
Turn the reel shift motor gear by a finger and
bring the S/T reel tables to the standard cassette
position. (Refer to Section 7-19.)
4. Removing the RMP (S1) retainer
assembly
(1) Remove the screw (a) with the S tension
regulator arm assembly drawn lightly in the
arrow direction.
(2) Remove the screw (b), then remove the RMP
(S1) retainer assembly.
RMP retainer
(S1) assembly
P1.4 x 3.5 (b)
P1.4 x 3.5 (a)
S tension regulator arm
assembly
Screw (a)
