7-31
DSR-2000A/2000AP

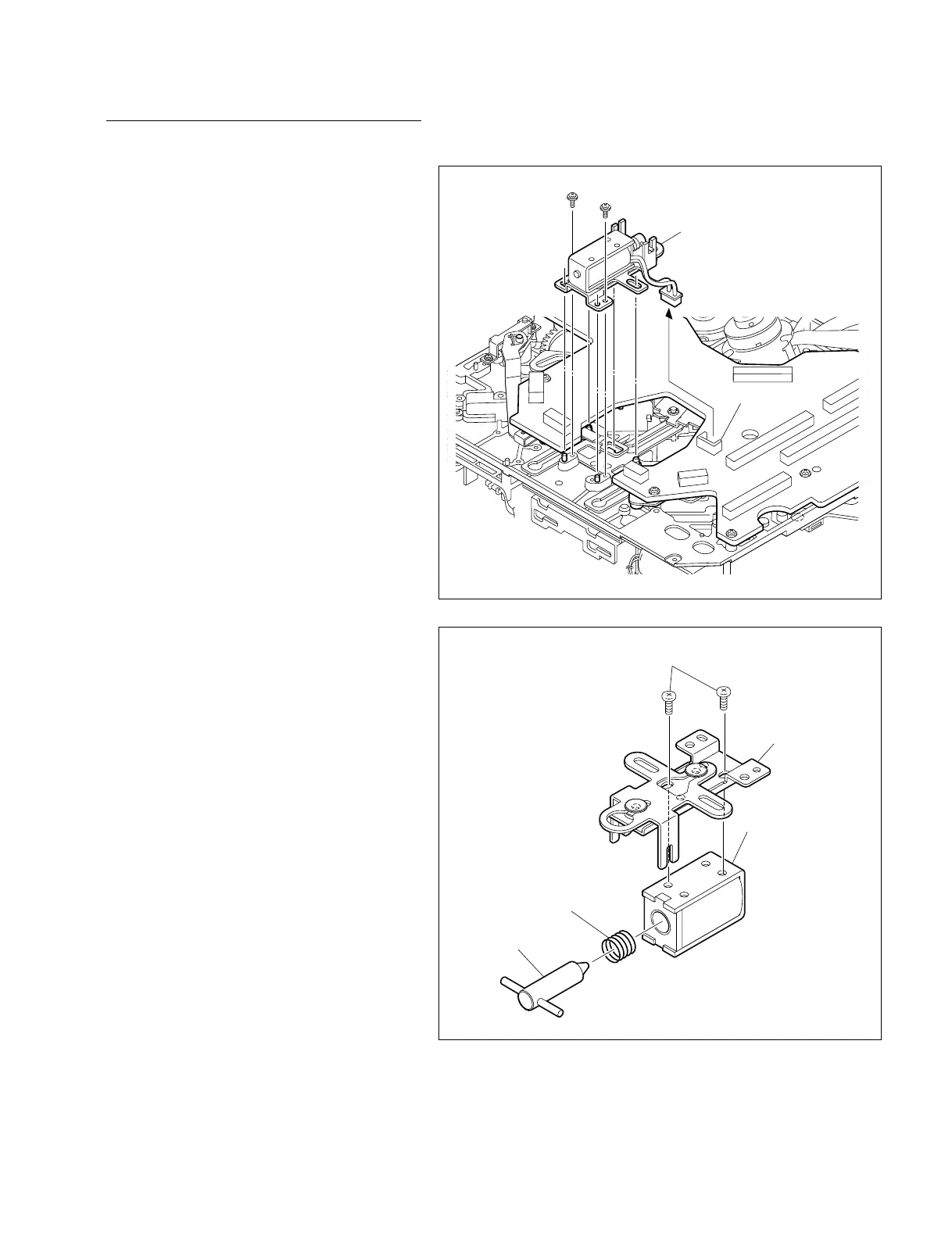

Stopper driving plate
Plunger solenoid
Compression spring
Iron core
P2 x 2
Stopper driving plate (M) assembly
P1.4 x 3.5
P1.4 x 3.5
Connector (CN8)
Replacement
1. Removing the MD cover.
Remove the MD cover. (Refer to Section 7-2.)
2. Removing the stopper driving plate
(M) assembly
(1) Disconnect the harness of the M stop sole-
noid assembly from the connector (CN8) on
the MS-64 board.
(2) Remove the two screws and remove the
stopper driving plate (M) assembly.
3. Replacing the M stop solenoid
assembly
(1) Remove the two screws to remove the
stopper driving plate (M) assembly.
(2) Extract the compressed coil spring from the
iron core of the plunger solenoid removed in
step (2) and fit the spring on a new solenoid
iron core.
