7-39
DSR-2000A/2000AP
P1.4 x 3.5
TG1 arm assembly
Pins
Tape guide
Tape cleaner
Replacement

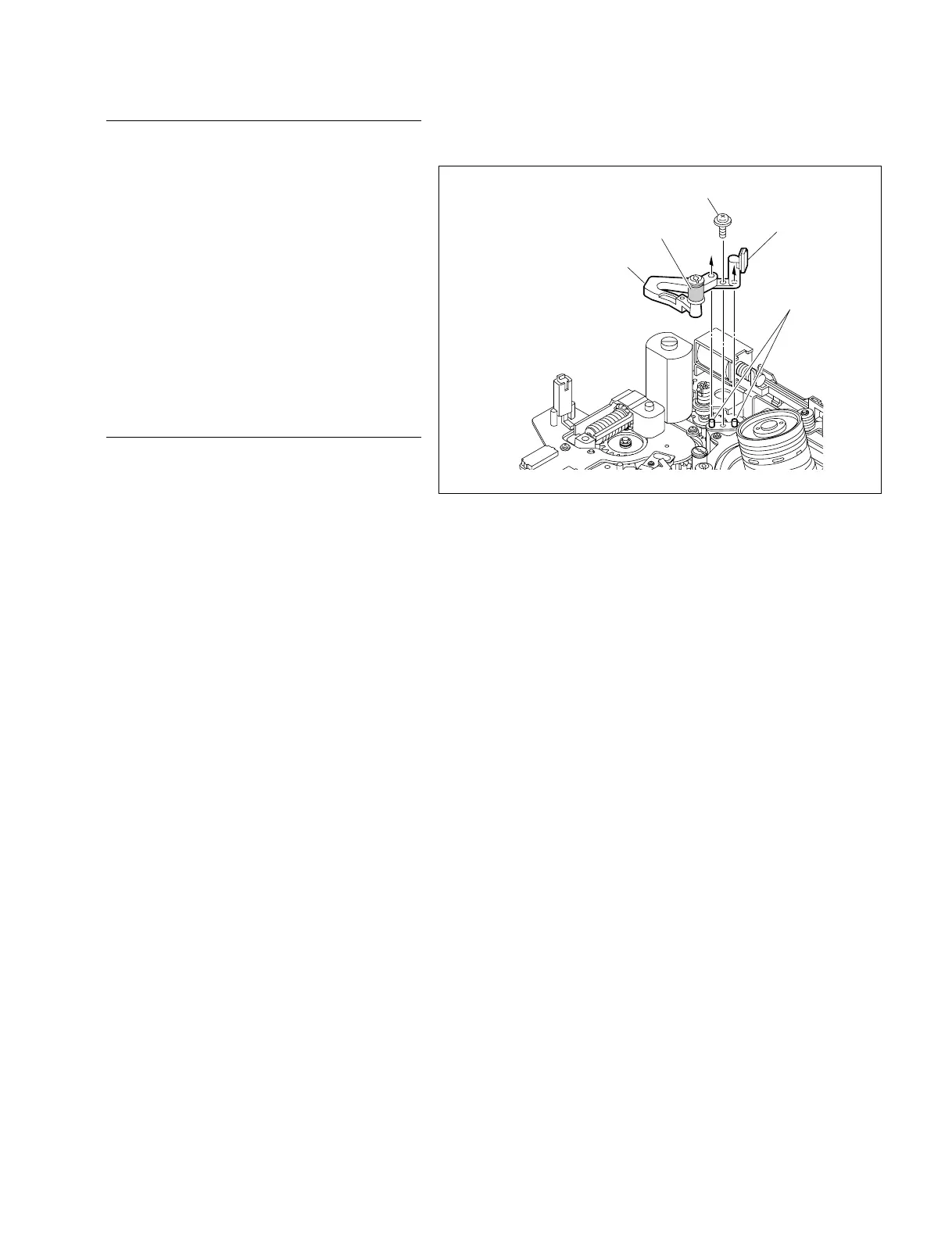

1. Replacing the TG1 arm assembly
(1) Remove the screw and remove the TG1 arm
assembly from the MD chassis.
(2) Fit two holes in a new TG1 arm assembly on
the two pins on the MD chassis respectively
and fix the assembly with the screw.
Tightening Torque : 0.1 N.m {1 kgf.cm}
2. Cleaning the tape guide
Wipe the tape guide on the TG1 arm assembly
and the tape cleaner with a cleaning cloth moist-
ened with cleaning fluid.
Adjustment after replacement
3. TENSION adjustment
(Refer to Section 5-3-3.)
4. Checking the tape path adjustment
(Refer to Section 8-4.)
