DSR-2000A/2000AP
2. MOTOR CHECK
The respective items of “MOTOR CHECK” are described below :
11
11
1 S-REEL
Checks the S-reel motor.

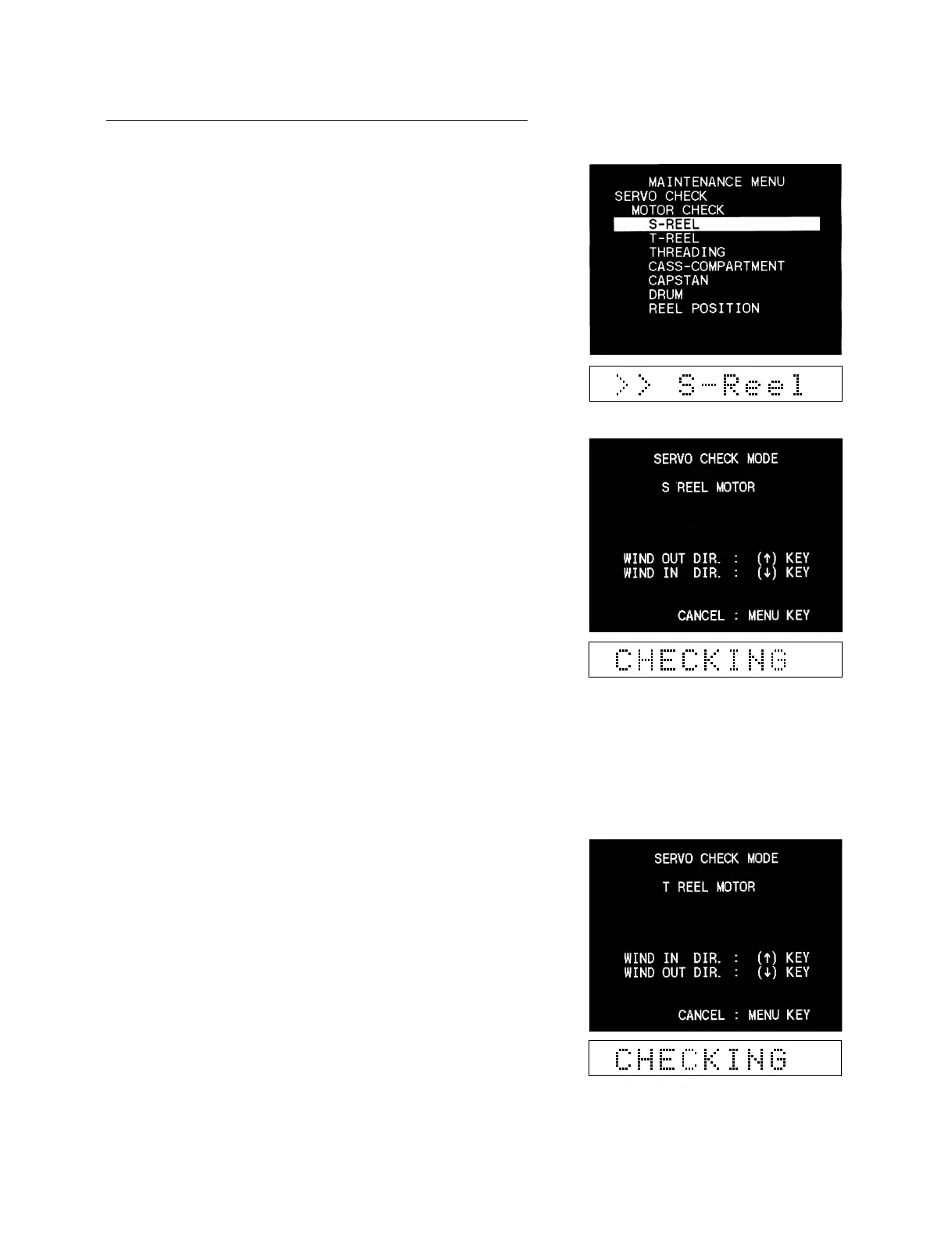

1. Execute the S-REEL.
2. Press and hold the [AUDIO|IN] (↑), then [IN] (↓) keys for
one to two seconds, and release the reel brake by activating the
brake solenoid. Confirm that the S reel motor rotates clock-
wise and counterclockwise respectively during pressing the
[AUDIO|IN] (↑) key and [IN] (↓) key.
In the case of trouble :
If the brake solenoid does not emit the operating sound and the S
reel motor does not rotate in the specified direction even though
pressing the [AUDIO|IN] (↑) and [IN] (↓) keys, check the S reel
motor assembly and reel motor driver circuit (SV-212 and MS-64).
22
22
2 T-REEL
Checks the T-reel motor.
1. Execute the T-REEL.
2. Press and hold the [AUDIO|IN] (↑), then [IN] (↓) keys for
one to two seconds, and release the reel brake by activating the
brake solenoid. Confirm that the T reel motor rotates clock-
wise and counterclockwise respectively during pressing the
[AUDIO|IN] (↑) key and [IN] (↓) key.
In the case of trouble :
If the brake solenoid does not emit the operating sound and the T
reel motor does not rotate in the specified direction even though
pressing the [AUDIO|IN] (↑) and [IN] (↓) keys, check the T reel
motor assembly and reel motor driver circuit (SV-212 and MS-64).
