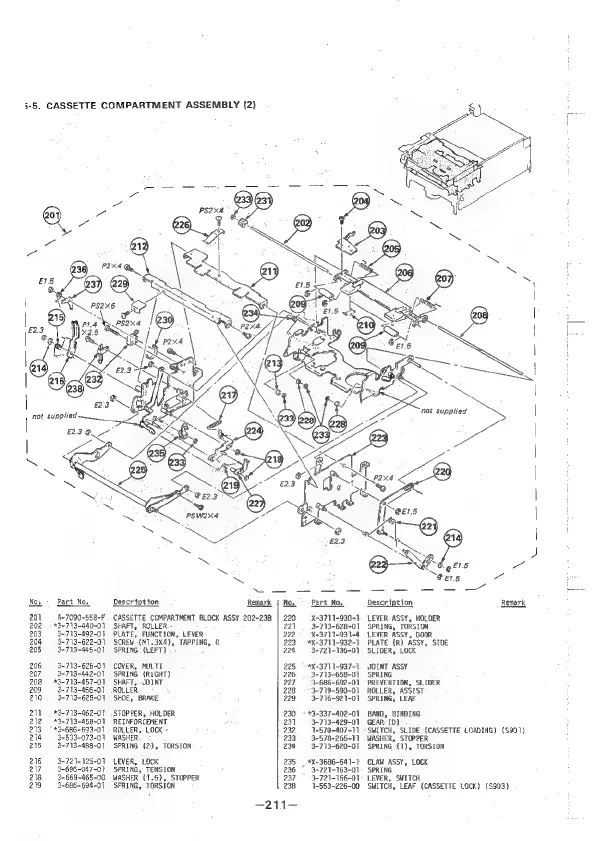

5-5. CASSETTE COMPARTMENT ASSEMBLY (2)
Nos Part No. Qescriptton Remark { No. Part Now Description Remark
201 A-7090-558-F CASSETTE COMPARTMENT BLOCK ASSY 202-238 | 220 X-3711-930-1 LEVER ASSY, HOLDER
202 . *3~713-440-01 SHAFT, ROLLER + 221 3-713-628-01 SPRING, TORSION
203 3-713-492-01 PLATE, FUNCTION, LEVER 222 Xe37}I-931-4 LEVER ASSY, DOOR
204 3-713-622-01 SCREW {M1.3X4), TAPPING, 0 223° *X-3711-932-1 PLATE (R) ASSY, SIDE
205 3-713-445-01 SPRING (LEFT) - 224 3-721-136-03 SLIDER, LOCK
206 3-713-626-01 COVER, MULTI 225 «= *X-3711-937-1. JOINT ASSY
207 3-713-442-01 SPRING (RIGHT) 226 3+713-658-01 SPRING
208 *3-713-457-01 SHAFT, -JOINT 227 ©: 3-686-692-01 PREVENTION, SLIDER
209 3-713-466-0.1 -ROLLER 228 3-719-590-01 ROLLER, ASSIST
210 3-713-625-01 SHOE, BRAKE. 229 3-716-921-01 SPRING, LEAF
211 *3-713-462-01 :STOPPER, HOLDER 230 © *3-337-402-01 BAND, BINDING
212 = *3-713-458-01 REINFORCEMENT 231 3-713-429-01 GEAR» {D)
213 *3-686-693-01 - ROLLER, LOCK 232 1-570-407-1] SWITCH, SLIDE (CASSETTE LOADING) ($901)
214 3-633-073-01 WASHER 233 3-578-265-11 WASHER, STOPPER
25 3+713-488-01 SPRING (2), TORSION 234 3-713-620-01 SPRING (1), TORSION
276 3-721-125-0171 LEVER, LOCK 235 «—*X-3686-841-1 CLAW ASSY, LOCK
217 3-696-047-01 SPRING, TENSION 236 «© 3-721-163-01- SPRING
218 3-669-465-00 WASHER (1.5), STOPPER 237 3-721-166-01- LEVER, SWITCH
219 3-686-694-01 SPRING, TORSION 238 3-553-226-00 SWITCH, LEAF {CASSETTE LOCK) ($903)
