Sony EVO-720P - Chassis Assembly

Note: The components identified by mark A\ or dotted
Jine with mark h are critical for safety.
Repiace oniy with part number specified.

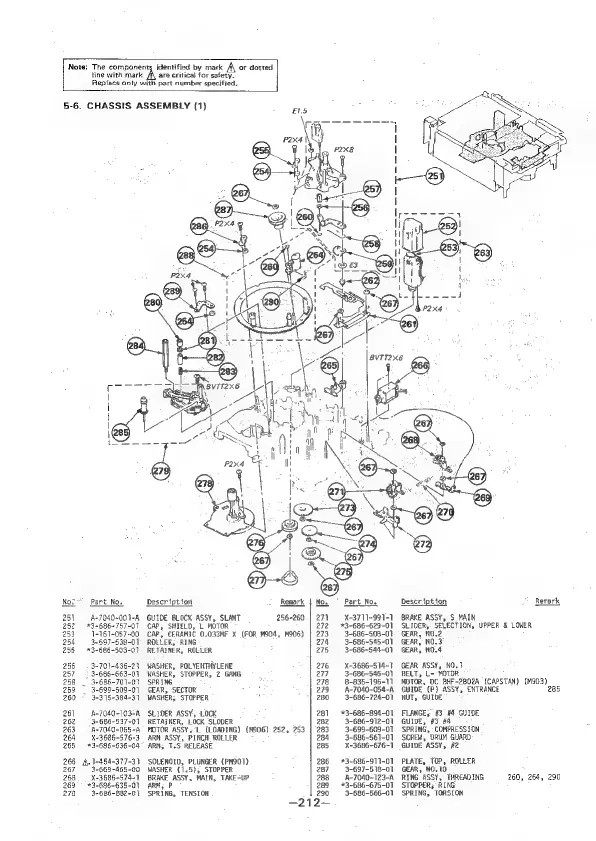

5-6. CHASSIS ASSEMBLY (1}
Nos Part No. Description Remark | No. ' Part Noe Description Remark
251 A-7040-001-A GUIDE BLOCK ASSY, SLANT 256-260 | 272 _X-3711-991-1 BRAKE ASSY, S MAIN
252 *3~686-757-01 CAP, SHIELD, L MOTOR 272 *3-686-629-01 SLIDER, SELECTION, UPPER & LONER
253 -1-161-057-00 CAP, CERAMIC 0.032MF X (FOR M904, M905) | 273 3-686-508-07 GEAR, NO.2 :
254 3-597-638-01° ROLLER, RING 274 3-686+545-01 GEAR, NO. 3°
255 *3-686-503-01 RETAINER, ROLLER 275 3-686-544-01 GEAR, NO.4
256 3+701-436-21 WASHER, POLYERTHYLENE 276 X-3686-514-1 GEAR ASSY, NO.1
257 — 3-686-663-01 WASHER, STOPPER, 2 GANG 277 3-686-546-0) BELT, L= MOTOR
258 3-686-701-01 SPRING : 278 8-835-196-11 MOTOR, DC BHF-2802A {CAPSTAN) (M903)
259 © -3-699-509-01 GEAR, SECTOR a _ | 229 A-7040-054-A GUIDE {P) ASSY, ENTRANCE 285
260 3-3 18-384-31 WASHER; STOPPER i 280 3-686-724-01 NUT, GUIDE
261 A-7040~103-A SLIDER ASSY, LOCK 281 *3-686-894-01 FLANGE,” #3 #4 GUIDE
262 —_3-686-537-01 RETAINER, LOCK SLODER 282 —-3-686-912-01 GUIDE, #3 #4
263 A~7040-065-A MOTOR ASSY,°L (LOADING) (M906) 252, 253 | 283 3-699-609-07 SPRING, COMPRESSION
264 —-X-3686-576-3 ARM ASSY, PINCH ROLLER 284 3-686-561-01 SCREY, DRUM GUARD
265 *3-686-636-00" ARM, T.S RELEASE 285 —-X+3686-676-1 GUIDE ASSY, #2
266 AA.1-454-377-31 SOLENOID, PLUNGER (PM901) 286 *3-686-911-01 PLATE, TOP, ROLLER
267 3-669-465-00 WASHER (1.5), STOPPER 287 3-697-518-0171 GEAR, NO.10
268. _ X-3686-574-1 BRAKE ASSY, MAIN, TAKE-UP 288 ©—-A-7040-123-A RING ASSY, THREADING 260, 264, 290
269° *3-686-635-01 ARM; P 289 *3-686-675-01 STOPPER; RING
270 3-686-882-01 SPRING, TENSION 290 3-686-566-01 SPRING, TORSION
