Sony EVO-720P - Threading Ring Assembly

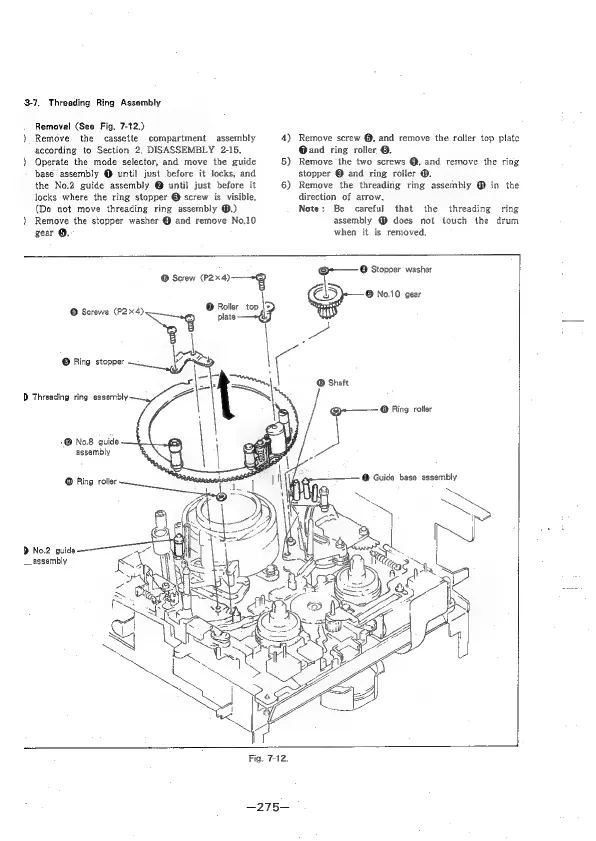

3-7, Threading Ring Assembly
Removal (See Fig. 7-12.)
Remove the cassette compartment assembly
according to Section 2. DISASSEMBLY 2-15.
Operate the mode selector, and move the guide
base‘ assembly @ until just before it locks, and
the No.2 guide assembly @ unti} just before it
locks where the ring stopper @ screw is visible.
(Do not move threading ring assembiy @.)
Remove the stopper washer @ and remove No.10
gear @.
4)
5)
6)
Remove screw @, and remove the roller top plate
@and ring rolier ©.
Remove ‘the two screws @, and remove the ring
stopper @ and ring rolier ©.
Remove the threading ring assembiy @ in the
direction of arrow,
Note: Be careful that the threading ring
assembly @ does not touch the drum
when it is removed,
D Threading ring assembly
2 No.2 guide
__assembly
© Screw fe G
@ Roller top le
plate
© Screws (P2x “Nyt
® Ring stopper
‘®B No.8 guide
assembly
@ Ring roller
©+—— 9 Stopper washer
a5
2
@ No.10 gear
® Shaft
eo © Ring roller
@ Guide base assembly
NS
SS
Fig. 7-12.
—275—
