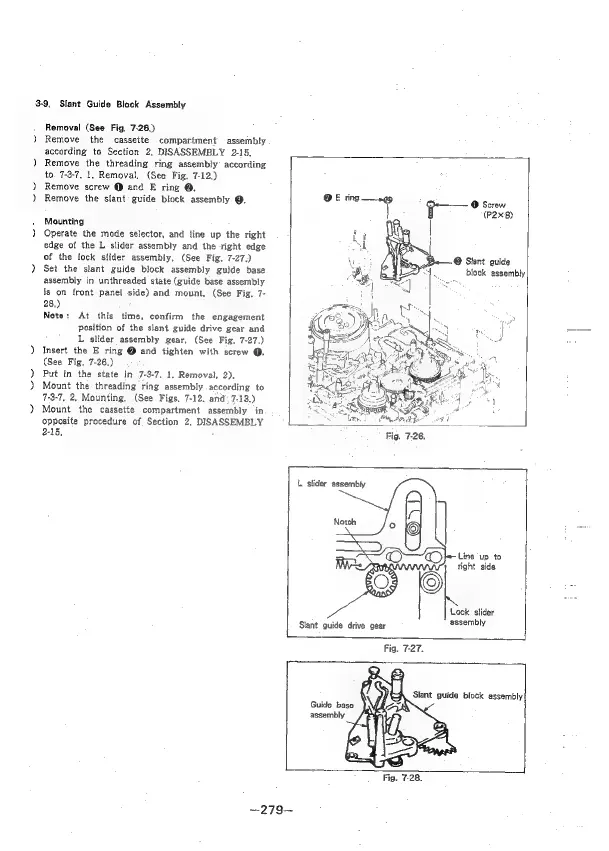

3-9, Slant Guide Block Assembly
Removal (See Fig. 7-26.)
) Remove the cassette compartment assembly
according to Section 2. DISASSEMBLY 2-15,
) Remove the threading ring assembly: according
to. 7-3-7, 1. Removal. (See Fig. 7-12.)
) Remove screw @ and E ring @.
) Remove the slant guide block assembly @.
» Mounting
) Operate the mode selector, and line up the right
edge of the L slider assembly and the right edge
of the lock slider assembly. (See Fig, 7-27.)
) Set the slant guide block assembly guide base
assembly in unthreaded state (guide base assembly
is on front panel side) and mount. (See Fig. 7-
28.)
Note: At this time, confirm the engagement
position of the slant guide drive gear and
L slider assembly gear. (See Fig, 7-27.)
) Insert the E ring @ and tighten with screw @.
(See Fig, 7-26.)
) Put in the state in 7-3-7, 1, Removal, 2).
) Mount the threading ring assembly according to
7-3-7, 2, Mounting, (See Figs, 7-12. and’. 7-13.)
)} Mount the cassette compartment assembly in
opposite procedure of, Section 2, DISASSEMBLY
2-15, .
® Screw
(P2x8)
© Slant guide
block assembly
4 slider assembly
Notch °
OO
Ser nn
Slant guide drive gear
Line “up to
right side
3 ©
ap>
Lock slider
assembly
Fig. 7-27.
—279—
Fig. 7-28.
