Sony EVO-720P - Page 202

2.
2)
4)
5)
6)

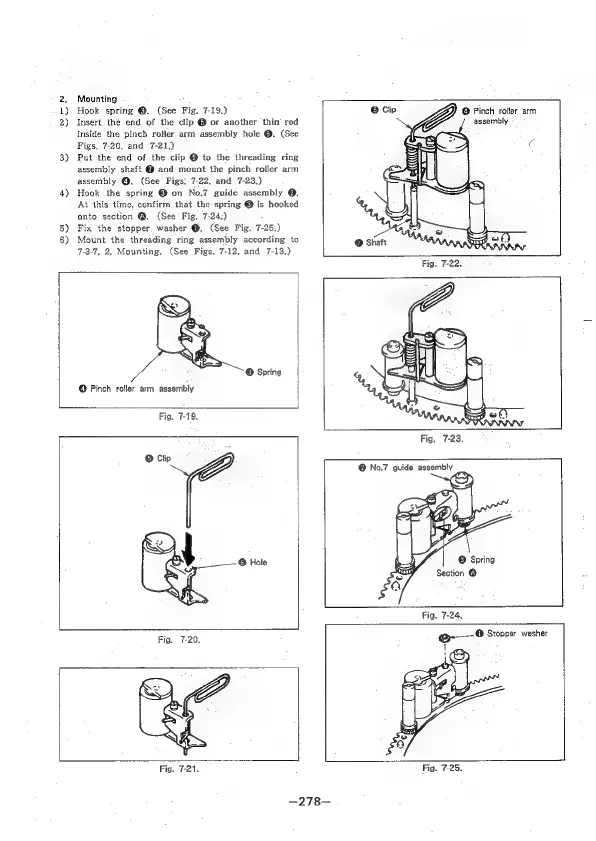

Mounting
Hook spring @. (See Fig. 7-19.)
Insert the end of the clip @ or another thin’ rod
inside the pinch roller arm assembly hole @. (See
Figs, 7-20, and 7-21.)
Put the end of the clip @ to the threading ring
assembly shaft @ and mount the pinch roijler arm
assembly @. (See Figs: 7-22. and 7-23.)
Hook the spring @ on No.7 guide assembly @.
At this time, confirm that the spring @ is hooked
onto section @. (See Fig, 7-24.)
Fix the stopper, washer @. (See Fig. 7-25.)
Mount the threading ring assembly according to
7-8-7, 2, Mounting. (See Figs. 7-12. and 7-13.)
@ Pinch roller arm assembly
Fig. 7-19.
bi
@ Hole
Fig. 7-20.
@ Shaft
@ Pinch roller arm
assembly
©
j
La
(
@ No.7 guide assembly
Fig. 7-23,
—278-—
Fig. 7-25.
