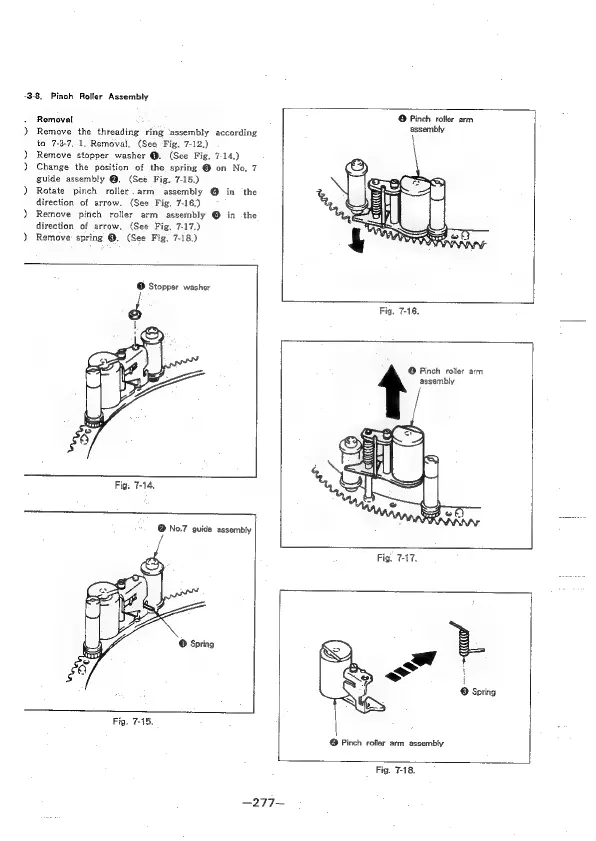

-3-8, Pinch Roller Assembly
. Removal
) Remove the threading ring assembly according
to 7-3-7, 1, Removai, (See Fig. 7-12.)
) Remove stopper washer @. (See Fig. 7-14.)
) Change the position of the spring @ on No. 7
guide assembly @, (See Fig. 7-15.)
) Rotate pinch roller: arm assembly @ in the
direction of arrow. (See Fig. 7-16.)
) Remove pinch roller arm assembly @ in the
direction of arrow, (See Fig, 7-17.)
) Remove: spring @, (See Fig. 7-18.)
Stopper washer I
© Pinch roller arm
assembly
Fig. 7-16.
Fig. 7-14.
@ No.7 guide assembly
© Pinch roller arm
assembly
Fig. 7-47.
® Spring
Fig. 7-15.
H
I
@ Spring
NEES
|
!
@ Pinch roller arm assembly
—277~—
Fig. 7-18.
