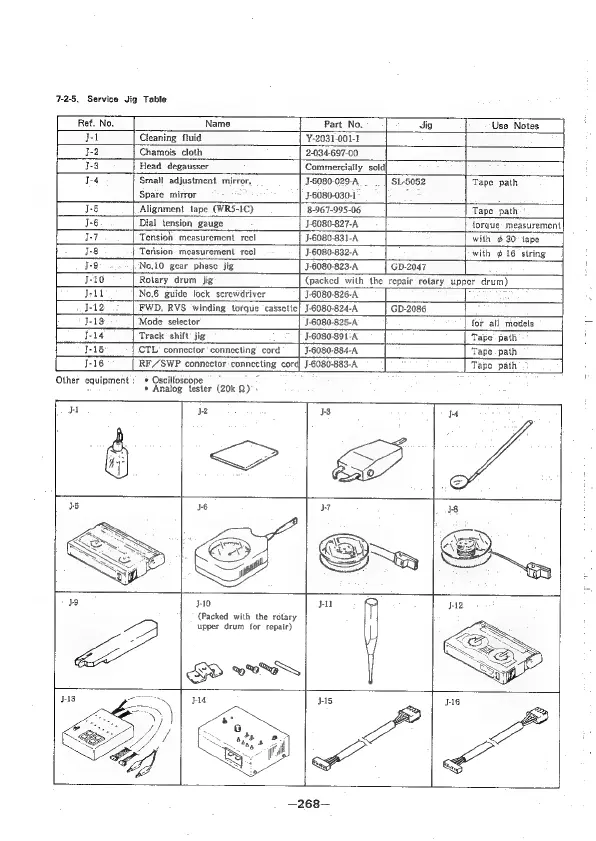

7-2-5, Service Jig Table
Other equipment : * Oscilloscope
* Analog tester (20k 2)
Ref. No. Name [Part No. Jig Use Notes
iz Cleaning fluid | ¥-2031-001-1
j-2 Chamois cloth 2-034-697-00
J-3 Head degausser Commercially sold
J-4 Small adjustment mirror, J-6080-029-A. SL-5052 Tape path
Spate mirror : J-6080-030-1- :
J-5 Alignment tape (WRS-1C} 8-967-995-06 Tape path
J-6 Dial tension gauge J-6080-827-A torque measurement
J-7 Tension measurement reel J-6080-831-A with ¢ 30° lape
J-8 Tension. measurement reel J-6080-832-A with $16 string
J-9° No.10 gear phase jig J-6080-823-A, GD-2047
J-10 Rotary drum jig (packed with the repair rolary upper drum)
Jetl No.6 guide lock screwdriver J-6080-826-A,
J-12 FWD, RVS Winding torque cassette} J-6080-824-A GD-2086
JAS Mode selector J-6080-825-A for all models
J-14 Track’ shift’ jig J-6080-891-A Tape path
318: 3-6080-884-A Tape path
78080884 Tape path
32
310
(Packed with the rotary
upper drum for repair)
5-16
