-8. MECHANICAL CHECK, ADJUSTMENT
AND REPLACEMENT
ote: ¢Use the mode selector (Ref. No, J-13) for
this mechanical check, adjustment’ and
replacement, + .
«The mode inside. the is the mode set
by: pressing the mode selector button.
*For. recorder and player the © same
mechanism section is: used.
-31, § Reel Table Assembly
. Removal (See Fig. 7-6.)
) Remove the . cassette compartment assembly
according to Section 2, DISASSEMBLY 2-15,
) Set to FF/REW] mode,
) Remove screw @ and remove reel table stopper
e.
) Remove the $ reel table assembly @.
Note :Be sure to hold the upper reel claw section
when removing, (See Fig, 7-6,(Note))
\ |
{~ yn
4
x
A ~
\
@ 5S reel table remy
band assembly
@ Tension regulator |
|
© Screw
(PTPWI
2)
3)
4)
5)
6)
@ S main brake assembly
Mounting (See Fig. 7-6.)
Put a half drop of oi! on the upper poirit of shaft
e.
Move the S main brake assembly @ in the
direction of arrow,
Mount the S$ ree! table assembly. @, being careful
not to hit the tension regulator band assembly
6.
Mount the reel table stopper @ and tighten with
screw @.
Set to [LOADING/UNLOADING] mode.
Mount the cassette compartment assembly in
opposite procedure of Section 2, DISASSEMBLY
2-15,
Note :
Hold here for removal.
Note :
Clean with alcohol if
this part is touched.

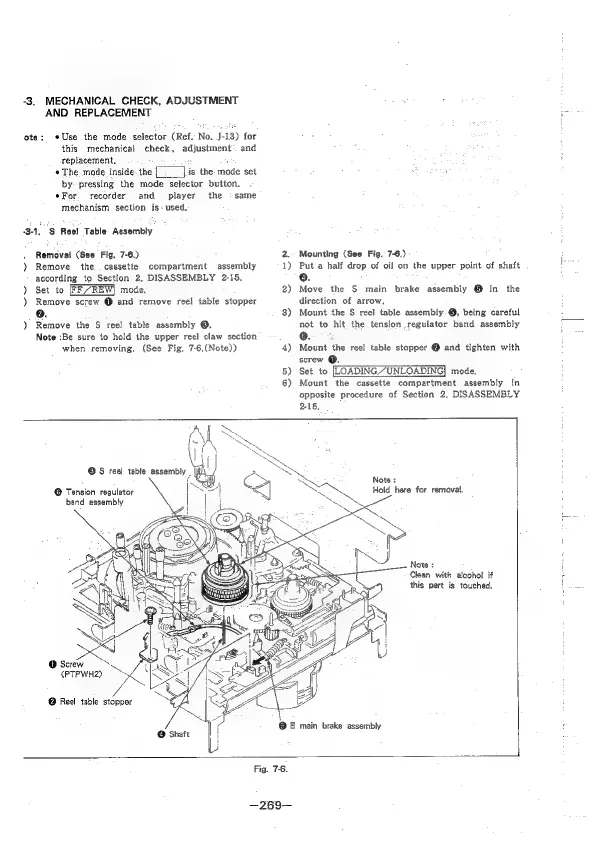

Fig. 7-6.
—269—
