Sony EVO-720P - 7-3-14, MSW Assembly; M Slider

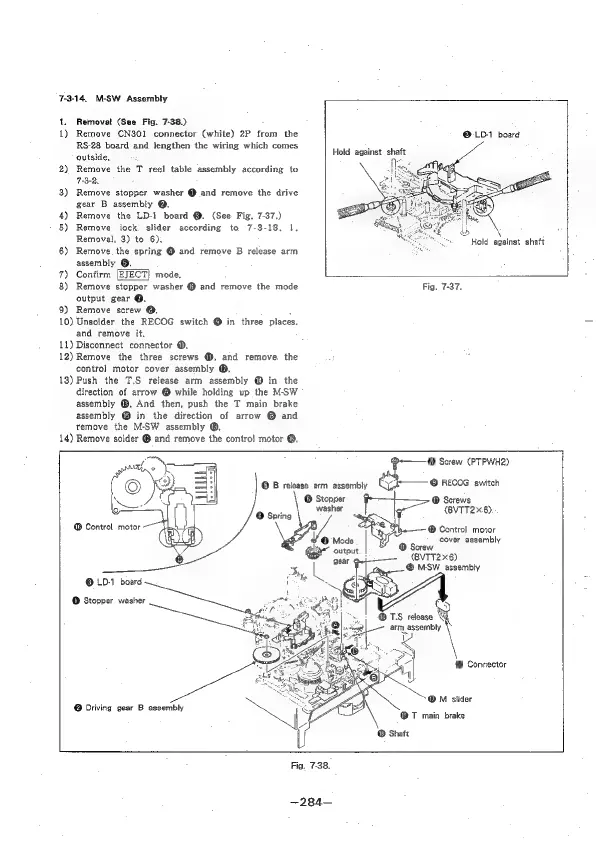

7-3-14, M-SW Assembly
. Removal (See Fig. 7-38.)
1) Remove CN301 connector (white) 2P from the @-LD-1 board
RS-28 board and lengthen the wiring which comes
outside,
2) Remove the T reel table assembly according to
7-3-2,
3) Remove stopper washer @ and remove the drive
gear B assembly @.
4) Remove the LD-1 board @. (See. Fig. 7-37.)
5) Remove lock. slider according to 7-3-13. 1.
Removal, 3) to 6).
6) Remove. the spring @ and remove B release arm
assembly ®.
7) Confirm [EJECT] mode.
Hold against shaft
ri
8) Remove stopper washer @ and remove the mode Fig. 7-37.
output gear @.
9) Remove screw @.
10) Unsolder the RECOG switch © in three places,
and remove it,
11) Disconnect connector @.
12) Remove the three screws @, and remove. the
contro] motor cover assembly @.
18) Push the T.S release arm assembly @ in the
direction of arrow @ while holding up the MSW
assembly @®. And then, push the T main brake
assembly @ in the direction of arrow © and
remove the M-SW assembly ®,
14) Remove solder @ and remove the contro! motor ®.
@ Screw (PTPWH2)
@ B release arm assembly © RECOG switch
© Stopper @ Screws
© Spring washer (BVTT2*6).
Consol
meter
a/
bictoen
Control
motor
@ Mods cover assembly
er output © Screw
i (BVTT2x6)
he L ® MSW_ assembly
© LD-1 board
@ Stopper washer
® TS release \
|_-— arm assembly
® Connector
® M slider
®T main brake
® Shaft
@ Driving gear B assembly
