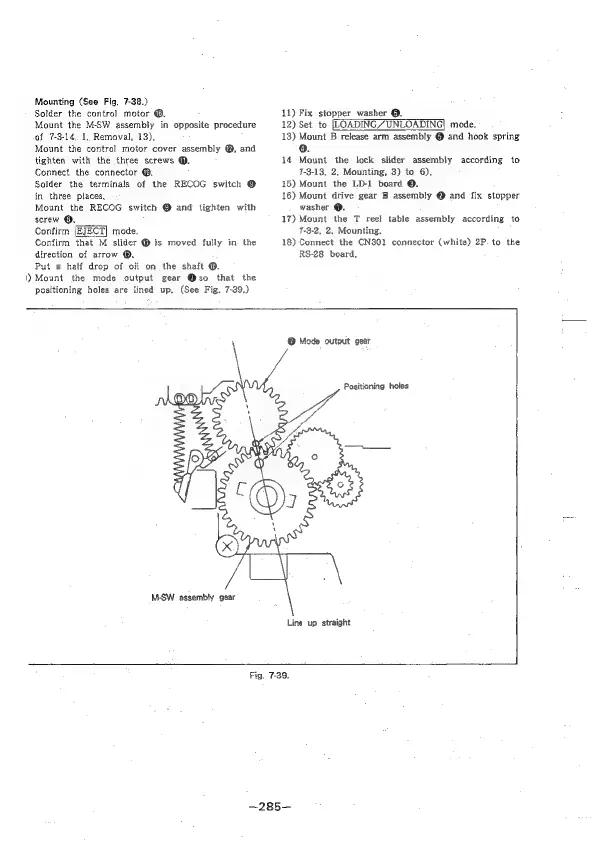

Mounting (See Fig, 7-38.)
Solder the control motor @.
Mount the M-SW assembly in opposite procedure
of 7-3-14. 1. Removal, 13),
Mount the contro! motor cover assembly @, and
tighten with the three screws @.
Connect the connector @.
Solder the terminals of the RECOG switch @
in three places,
Mount the RECOG switch @ and tighten with
screw @. .
Confirm [EJECT] mode,
Confirm that M slider @ is moved fully in. the
direction of arrow ®.
Put a half drop of oil on the shaft @.
!)Mount the mode output gear @so that the
positioning holes are lined up. (See Fig. 7-39.)
11) Fix stopper washer @.
12) Set to [LOADING/UNLOADING] mode.
13) Mount B release arm assembly @ and hook spring
0.
14 Mount the lock slider assembly according to
7-83-13, 2, Mounting, 3) to 6),
15) Mount the LD-1 board @.
16) Mount drive gear B assembly @ and fix stopper
washer @.
17) Mount ‘the T reel table assembly according to
7-3-2, 2, Mounting.
18) Connect the CN301 connector (white) 2P. to the
RS-28 board.
M-SW assembly gear
@ Mode output gear
Positioning holes
Line up straight
Fig. 7-38.
