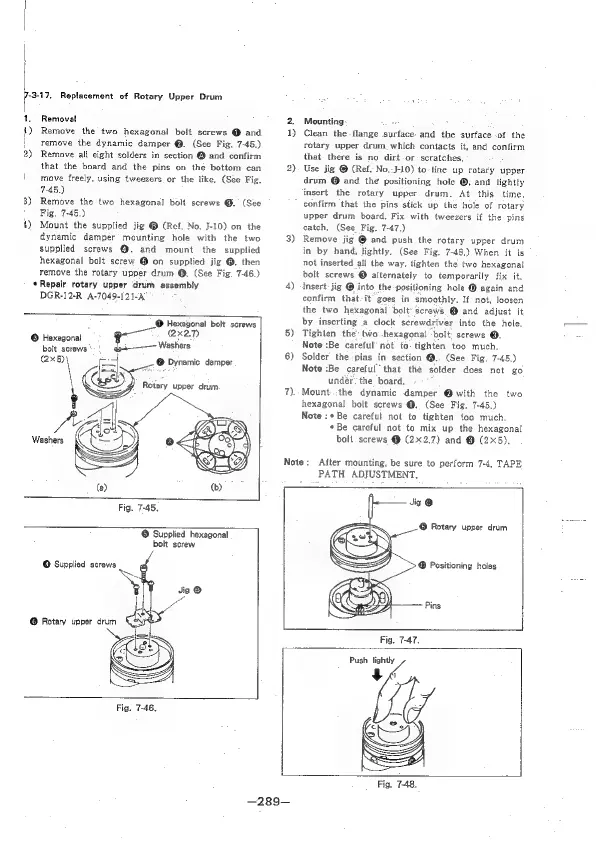

3-17,
Replacement
of
Rotary
Upper
Drum
Removal
)
Remove
the
two
hexagonal
bolt
screws
@
and
remove
the
dynamic
damper
@.
(See
Fig.
7-45.)
)
Remove
all
eight
solders
in
section
@
and
confirm
that
the
board
and
the
pins
on
the
bottom
can
move
freely,
using
tweezers
or
the
like,
(See
Fig.
7-45.)
3)
Remove
the
two
hexagonal
bolt
screws
@.
(See
'
Fig.
7-45.)
4)
Mount
the
supplied
jig
®
(Ref,
No,
J-10)
on
the
dynamic
dampér’
mounting
hole
with
the
two
supplied
screws
@,
and
mount
the
supplied
hexagonal
bolt
screw
@
on
supplied
jig
@,
then
remove
the
rotary
upper
drum
@,
(See
Fig.
7-46.)
«Repair
rotary
upper
drum
assembly
DGR-12-R
A-7049-121-A"
eet
@
Hexagonal
bolt
screws
2x2D
©
Hexagonal
,
sae
xe
bolt
screws
'
a
Washers
(2x8)
@
Dynamic
damper
Rotary
upper
drum
vas
;
Washers
Fig.
7-45.
@
Supplied
hexagonal
bolt
screw
©
Supplied
screws
Jig
©
g
5
=
@
Rotary
upper
drum
Fig.
7-46,
2)
Mounting.
Clean
the
flange
surface:
and
the
surface
of
the
rotary
upper
drum.
which
contacts
it,
and
confirm
that
there
is
no
dirt.or
scratches.
Use
jig
@
(Ref.
No.-J-10)
to-line
up
rotary
upper
drum
@
and
the
positioning
hole
@,
and
lightly
insert
the
rotary
upper
drum.
At
this
time,
"
confirm
that
the
pins
stick
up
the
hole
of
rotary
3)
4)
5)
6)
7)
Note:
upper
drum
board.
Fix
with
tweezers
if
the
pins
catch.
(See
Fig.
7-47.)
Remove
jig
@
and
push
the
rotary
upper
drum
in
by
hand,
lightly,
(See
Fig,
7-48,)
When
it
is
not
inserted
all
the
way,
tighten
the
two
hexagonal
bolt
screws
@
alternately
to
temporarily
fix
it,
Insert
jig
@
into
the
positioning
hole
®
again
and
confirm
that-it
goes
in
smoothly.
If
not,
loosen
the
two
hexagonai
bolt’
screws
@
and
adjust
it
by
inserting
a
clock
screwdriver
into
the
hole.
Tighten
the
two
hexagonal
‘bolt:
screws
@.
Note
:Be
careful
not
to-
tighten
too
much,
Solder
the:
pins
in
section
@..
(See
Fig,
7-45.)
Note
:Be
careful
“that
the
solder
does
not
go
under.
the
board.
Mount..the
dynamic
damper
@with
the
two
hexagonal
bolt
screws
@.
(See
Fig.
7-45.)
Note:
Be
careful
not
to
tighten
too
much.
*
Be
careful
not
to
mix
up
the
hexagonal
bolt
screws
@
(22.7)
and
@
(2x5).
After
mounting,
be
sure
to
perform
7-4,
TAPE
PATH
ADJUSTMENT,
©
Rotary
upper
drum
®
Positioning
holes
Fig.
7-47.
Push
lightly
—289—
Fig.
7-48.
