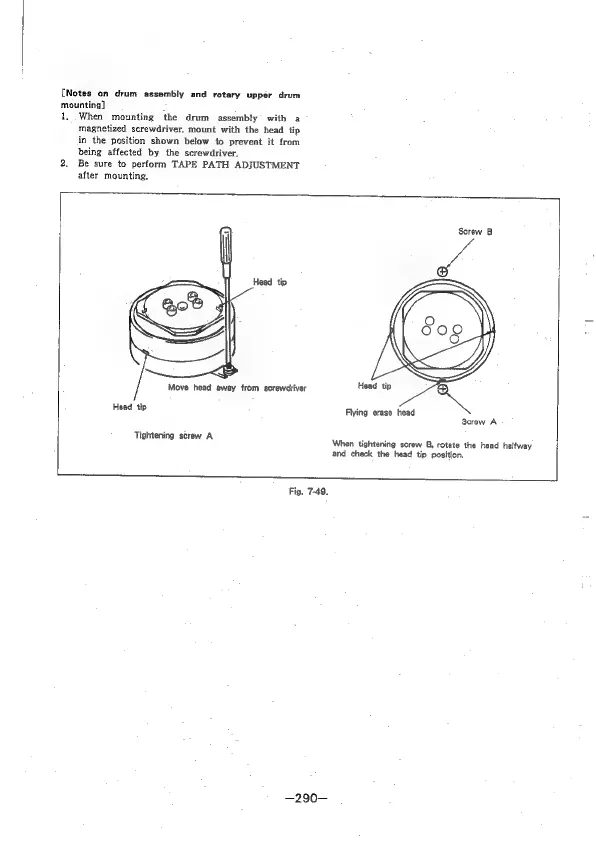

[Notes on drum assembly and rotary upper drum
mounting]
1, When mounting the drum assembly with a2
magnetized screwdriver, mount with the head tip
in the position shown below to prevent it from
being affected by the screwdriver.
2, Be sure to perform TAPE PATH ADJUSTMENT
after mounting.
Head tip
Tightening screw A
Move head away from screwdriver
Fig, 7-49.
—290—
Screw B
Head tip
Flying erase head ae
Screw A
When tightening screw B, rotate the head halfway
and check the head tip position.
