Sony EVO-720P - Entrance Guide (P) Assembly; Tape Path Adjust

7-310, Entrance Guide (P) Assembly
2)
3)
4)
(No. 2 Guide Assembly)
Removal (See Fig. 7-29.)
Turn the rotary upper drum counterclockwise and
remove the head section from the entrance guide
(P) assembly @.
Remove screw @ and the drum guard screw @.
Remove. guide nut @, and remove guide flange
@, guide @ and compression spring @.
Remove the entrance guide (P) assembly @.
1)
2)
3)
4)
Note:
Mounting (See Fig. 7-29.)
Confirm that [LOADING TOP] mode is: set.
Engage the entrance guide (P) assembly and L
slider assembly’ with their flat portions @ and
© as shown. s
Mount the -coil spring @, guide @ and guide
flange @ in that order and then temporarily
tighten the guide nut O. ’
Tighten screw.@ and the drum guard screw @.
Be sure to perform 7-4. TAPE PATH ADJUST-
MENT after mounting.
@ Drum guard ~|
@ Entrance guide (P)
(No.2 guide
© Guide nut
se. © Guide flange
eo @ Guide
Aa
Si
assembly
assembly)
Ze Compression spring
@ Screw (BVTT2x6)
Entrance guide (P)
assembly gear
®
Cm
\ slider assembly

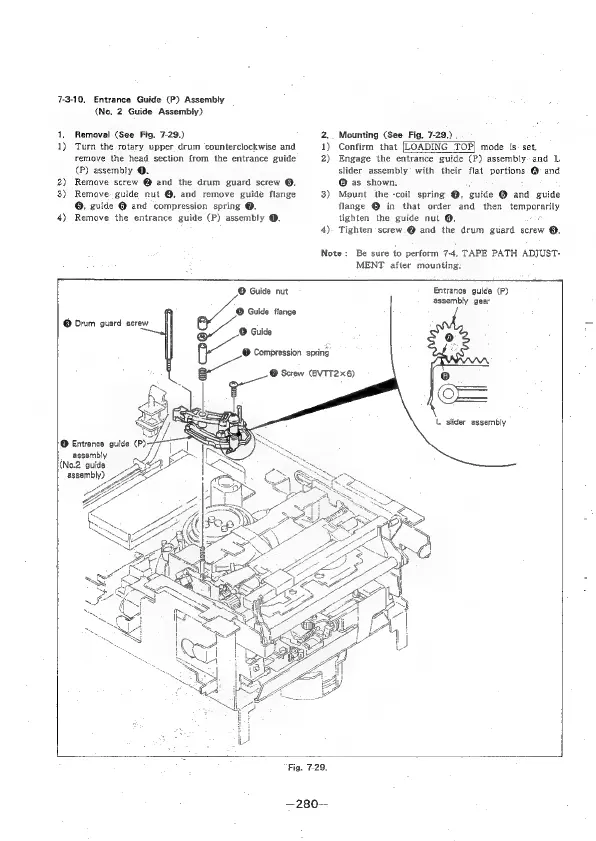

Fig. 7-29.
—280—
