4. EXPLODED VIEWS
NOTE:
* XX, —X mean standardized parts, so
they may have some differences from
the original one,
© The construction parts of an assembled
part are indicated with a collation
number in the remark column.

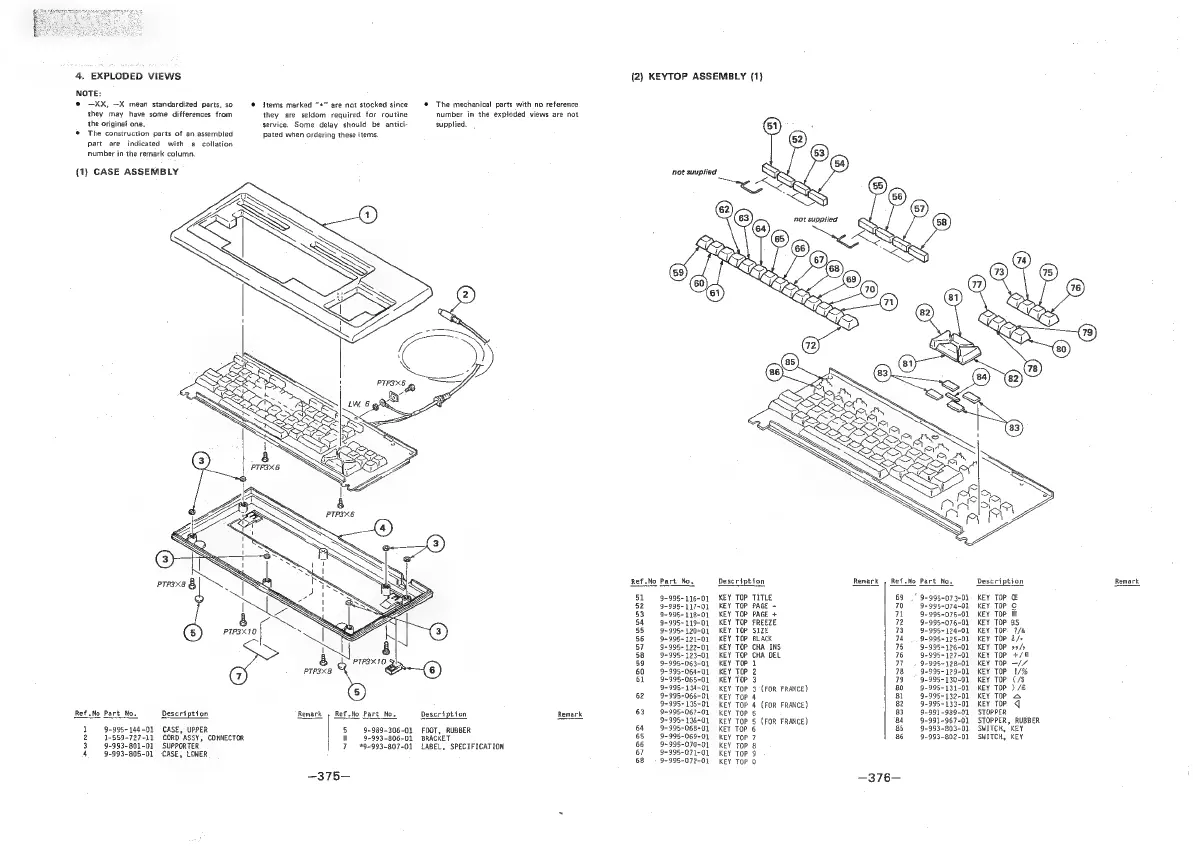

(1) CASE ASSEMBLY
Items marked “+” are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.
© The mechanical parts with no reference
number in the exploded views are not
supplied.
(2) KEYTOP ASSEMBLY (1)
not suuplied
Ref.No Part Now Description Remark , Ref.No Part No. Description Remark
51 9-995-116-01 KEY TOP TITLE 69 — 9-995-073-01 KEY TOP &
$2 9-995-117-01 KEY TOP PAGE - 70 9-995-074-01 KEY TOP C
53 9-995-118-01 KEY TOP PAGE + 71 9-995-075-01 KEY TOP NV
54 9-995-119-01 KEY TOP FREEZE 72 9-995-076-01 KEY TOP BS
55 9-995-120-01 KEY TOP SIZE 73 9-995-124-01 KEY TOP 7/&
56 9-995-121-01 KEY TOP BLACK 74 9-995-125-01 KEY TOP 2/+
57 9-995-122-01 KEY TOP CHA INS 75 — 9-995-126-01 KEY TOP »»/y
58 9-995-123-01 KEY TOP CHA DEL 76 9-995-127-01 KEY TOP +/E
59 9-995-063-01 KEY TOP 1 77 9-995-128-01 KEY TOP —//
60 —-9-995-064-01 KEY TOP 2 78 — 9-995-129-01 KEY TOP 1/%
61 9-995-065-01 KEY TOP 3 79 9-995-130-01 KEY TOP (/$
9-995-134-01 KEY TOP 3 (FOR FRANCE) 80 9-995-131-01 KEY TOP ) /&
62 9-995-066-01 KEY TOP 4 81 9-995~132-01 KEY TOP &
399515, 01 KEY TOP 4 (FOR FRANCE) 82 9-995-133-01 her ih
Ref.No Part No. Description Remark , Ref.No Part No. ription mark 3 -995-067-01 KEY TOP 5 83 9-991-989-01 STOPPER
Pe oe oe ee Bescrip Remark 9-995-136-01 KEY TOP 5 (FOR FRANCE) 84 9-991-967-01 STOPPER, RUBBER
1 -9-995-144-01 CASE, UPPER 5 9-989-306-01 FOOT, RUBBER 64 —-9-995-068-01 KEY TOP 6 85 9-993-803-01 SWITCH, KEY
2 1-559-727-11 CORD ASSY, CONNECTOR 6 93-806-01 BRACKET 65 — 9-995-069-01 KEY TOP 7 86 9-993-802-01 SWITCH, KEY
3 9-993-801-01 SUPPORTER 7 *9-993-807-01 LABEL, SPECIFICATION 66 9-995-070-01 KEY TOP 8
4 9-993-805-01 CASE, LOWER 67 9-995-071-01 KEY TOP 9
68 — 9-995-072-01 KEY TOP 0
