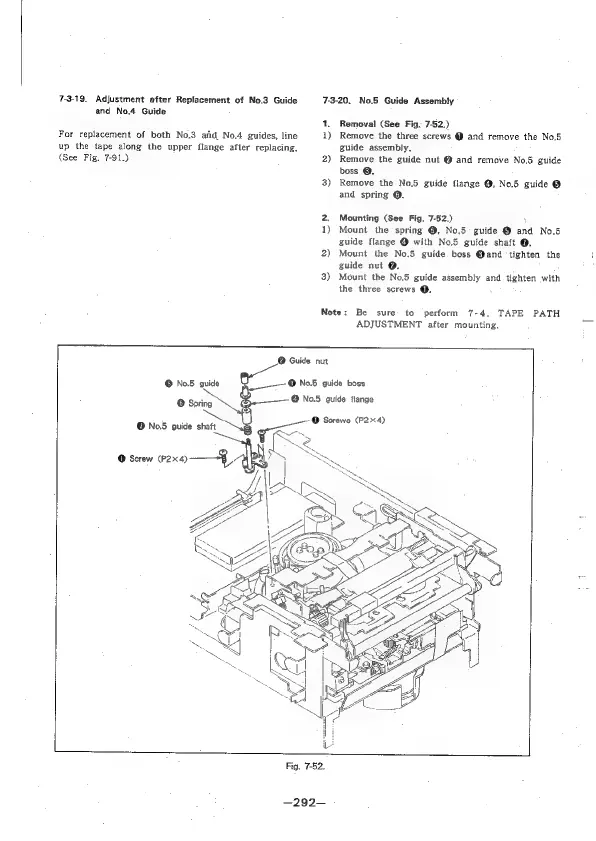

73-19. Adjustment after Replacement of No.3 Guide
and No.4 Guide
For replacement of both No.3 and No.4 guides, line
up the tape along the upper flange after replacing.
(See Fig. 7-91.)
gle
@ No.5 guide
© Spring
@ No.5 guide shaft
@ Screw (P2x4) — 3.
Ze
ZX,
@ Guide nut
No.5 guide boss
ae @ No.5 guide flange
@ Sorews (P2%4)
7-3-20. No.5 Guide Assembly
. Removal (See Fig. 7-52.)
1) Remove the three screws @ and remove the No.5
guide assembly,
2) Remove the guide nut @ and remove No,5 guide
boss @.
3) Remove the No.5 guide flange @, No.5 guide @
and spring @.
. Mounting (See Fig. 7-52.)
1) Mount the spring @, No.5: guide @ and No.5
guide flange @ with No.5 guide shaft @.
2) Mount the No.5 guide. boss @and ‘tighten the
guide nut @.
3) Mount the No.5 guide assembly and tighten with
the three screws @.
Note: Be sure to perform 7-4, TAPE PATH
ADJUSTMENT after mounting.
SSS
Fig, 7-52.
—292—
