7-3-6, Loading Motor Assembly
1. Removal (See Fig. 7-11.) we 2. Mounting (See Fig. 7-11.) s
1). Remove L motor. belt @. 1) Mount the loading motor assembly.@ and tighten
2) Remove the CN302 connector (red) 2P @ from with the two screws @. any
the RS-28 board. 2} Connect CN302 connector (red) 2P @ to RS-28
3) Remove the two screws @ and remove the board, :
loading motor assembly @. F 3) Mount L motor belt @.
@ Loading motor assembly
x Belt O
Pully
Belt
@ Connector CN302 (red) 2P
Loading motor

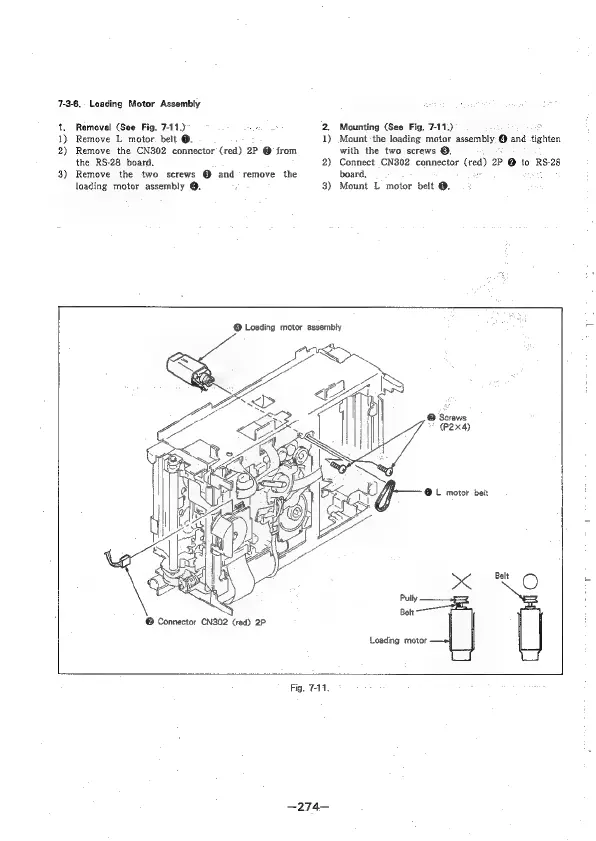

Fig, 7-11.
