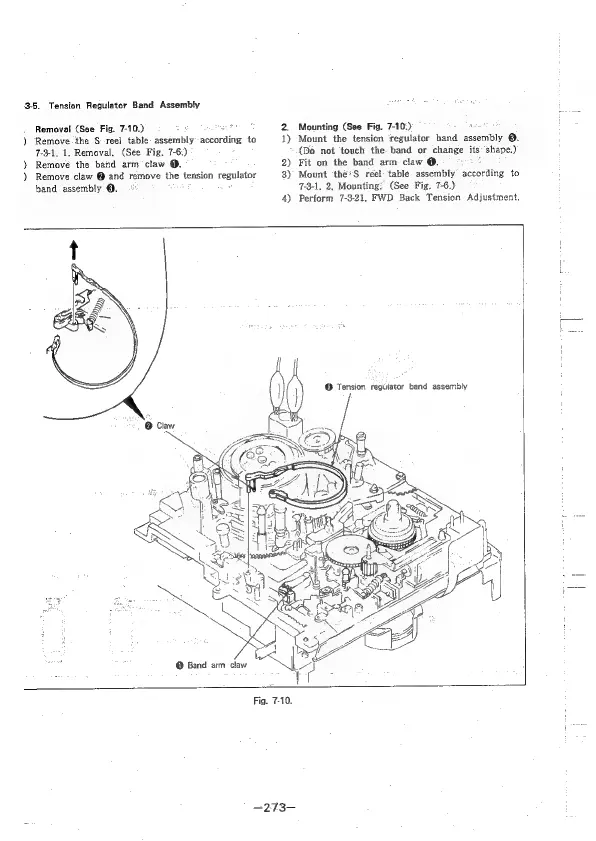

35. Tension Regulator Band Assembly
Removal (See Fig. 7-10.) a
) Remove-the S reel table: assembly according to 1)
7-3-1, 1, Removal, (See Fig. 7-6.)
) Remove the band arm ‘claw @. 2)
) Remove claw @ and remove the tension regulator 3)
band assembly @.
4)
Mounting (See Fig. 7-10.)
Mount the tension regulator band assembly ®.
{De not touch the band or change its ‘shape:)
Fit on the band arm claw @. 0 > = ¢
Mount the’S réel table assembly according to
7-3-1, 2, Mounting: (See Fig. 7-6.)
Perform 7-3-21. FWD Back Tension Adjustment,
© Band arm claw
® Tension regulator band assembly
