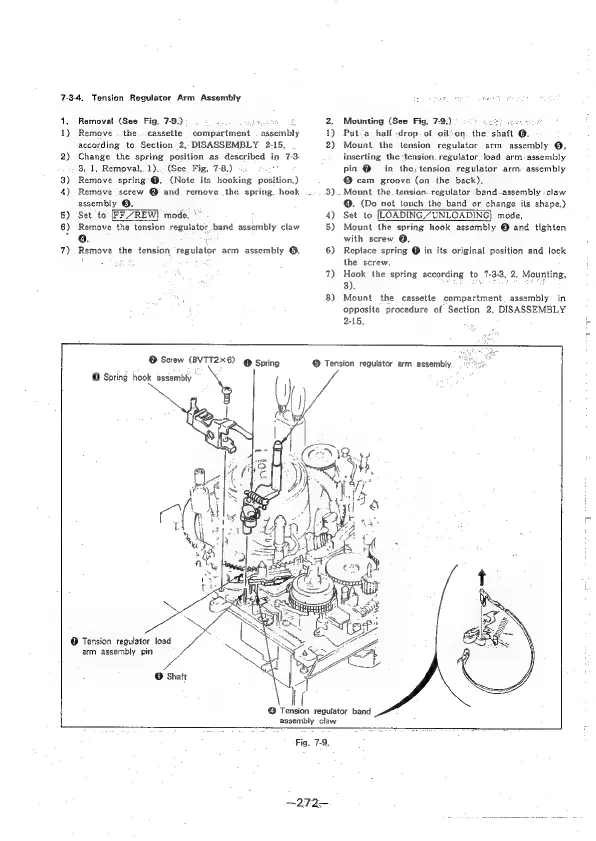

7-3-4, Tension Regulator Arm Assembly
1, Removal (See Fig, 7-9.) : g
1) Remove . the...cassette compartment . assembly
according -to. Section .2,. DISASSEMBLY 2-15,
2) Change the spring position as described in 7-3
8, 1, Remoyal,..1),. (See Fig. 7-8.) oi
3) Remove spring @. (Note its hooking position.)
4) Remove screw @ and remove the spring. hook
assembly ©,
5) ‘Set to [FF7REW] mode.
6) Remove the tension regulator band assembly claw
" 0. =
7) Remove the tension regulator arm assembly ©.
© Screw (BVTT2X6) © Spring
© Spring hook assembly ’
@ Tension regulator load
arm assembly pin
i)
2)
3)
4)
5)
6)
7)
8)
© Tension regulator arm assembly.
i
@ Tension regulator band
assembly claw
Mounting (See Fig. 7-9.) SP eels
Put-a half drop. of: oil*-on. the. shaft ©.
Mount the tension regulator arm assembly @,
inserting the ‘tension. regulator load arm: assembly
pin @ in the:tension regulator arm: assembly
@ cam groove (on the back).
Mount the. tension. regulator band assembly claw
@. (Do not touch ihe band or change its shape.)
Set to |LOADING/UNLOADING} mode,
Mount the spring hook assembly ® and tighten
with screw @.
Replace spring @ in its original position and lock
the screw,
Hook the spring according to 7-3-3, 2, Mounting,
3), Sek dae :
Mount the cassette compartment, assembly in
opposite procedure of Section 2. DISASSEMBLY
2-15,
Fig, 7-9.
—272—
