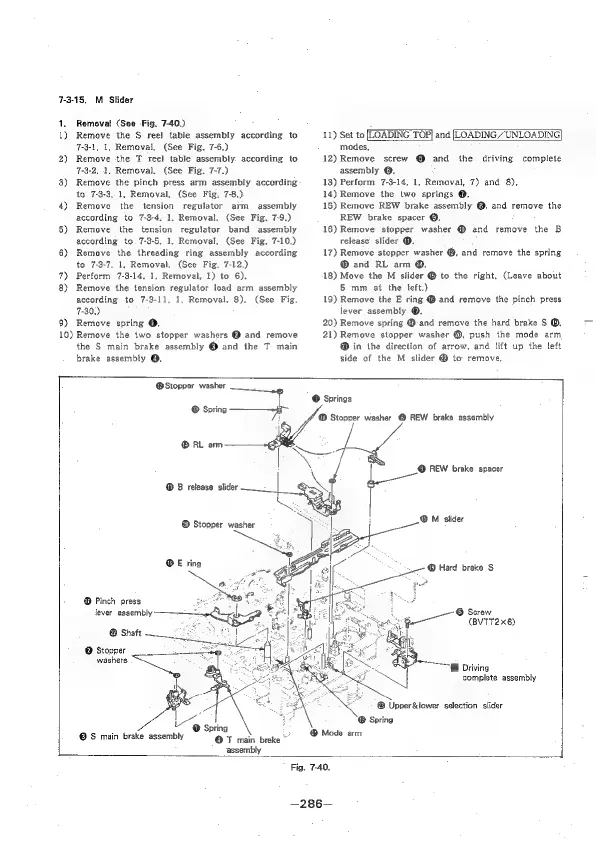

7-3-15, M Slider
1. Removal (See Fig. 7-40.)
1) Remove the $ ree! table assembly according to
7-3-1, 1, Removal, (See Fig. 7-6.)
2) Remove the T reel table assembly. according to
7-3-2, 1, Removal. (See Fig. 7-7.)
3) Remove the pinch press arm assembly according
to 7-3-3, 1, Removal.
(See Fig, 7-8.)
4) Remove the
according to
5) Remove the
according to
tension regulator arm assembly
7-8-4, 1, Removal. (See Fig. 7-9.)
tension regulator band assembly
7-3-5, 1, Removal, (See Fig. 7-10.)
6) Remove the threading ring assembly according
to 7-3-7. 1, Removal. (See Fig. 7-12.)
7) Perform 7-3-14, 1, Removal, L) to 6).
8) Remove the tension regulator load arm assembly
according to 7-8-11, 1, Removal, 8). (See Fig.
7-30.)
9) Remove spring @.
10) Remove the two stopper washers @ and remove
the S main brake assembly @ and the T main
brake assembly @.
11) Set to [LOADING TOP] and (LOADING / UNLOADING)
modes,
12) Remove screw @ and the driving complete
assembly @. .
18) Perform 7-3-14, 1. Removal, 7) and 8),
14) Remove the two springs @.
15) Remove REW brake assembly ®, and remove the
REW brake spacer @.
16) Remove stopper washer @ and remove the B
release slider @.
17) Remove stopper washer @, and remove the spring
® and RL arm @.
18) Move the M slider ® to the right, (Leave about
5 mm at the left.)
19) Remove the E ring @ and remove the pinch press
lever assembly @.
20) Remove spring @-and remove the hard brake S @,
21) Remove stopper washer @, push the mode arm
@ in the direction of arrow, and lift up the left
side of the M slider @ to remove.
@Stopper washer
!
® Spring FF
® RL arm
@® 8 release slider
@ Stopper washer
@E ting
® Pinch press
lever assembly
@ Shaft
@ Stopper
washers
“e
© S main brake assembly
Spring a
@T main breke ~
assembly
@ Screw
(BVTT2x6)
@ Driving
complete assembly
® Upper &iower selection slider
® Spring
@® Mods arm
Fig. 7-40.
—286—
