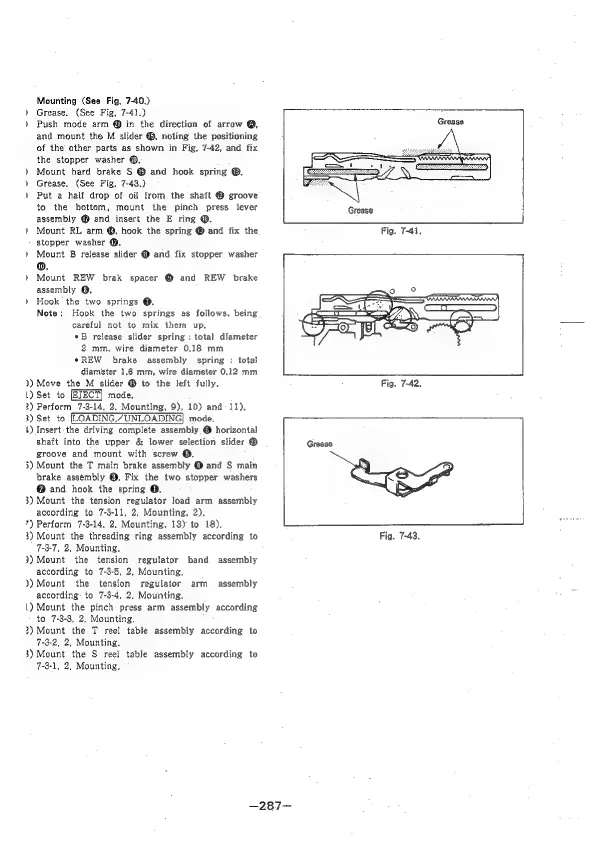

Mounting (See Fig. 7-40.)
Grease. (See Fig, 7-41.)
) Push mode arm @ in the direction of arrow @, Grease
and mount the M slider ®, noting the positioning
of the other parts as shown in Fig. 7-42, and fix
the stopper washer @,
} Mount hard brake S @ and hook spring ®.
Grease. (See Fig. 7-43.)
) Put a half drop of: oil from the shaft @ groove
to the bottom, mount the pinch press lever
assembly @ and insert the E ring @.
} Mount RL arm @, hook the spring ® and fix the Fig. 7-44,
stopper washer @.
} Mount B release slider @ and fix stopper washer
®.
+ Mount REW brak spacer @ and REW brake
assembly @.
) Hook the two springs @.
Note: Hook the two springs as follows, being
careful not to mix them up.
*B release slider spring : total diameter
2 mm, wire diameter 0.18 mm
¢*REW brake assembly spring : total
diameter 1,6 mm, wire diameter 0.12 mm
}) Move the M slider ® to the left fully. Fig. 7-42.
\) Set to mode,
2) Perform 2, Mounting, 9), 10) and 11).
1) Set to mode,
t) Insert the driving complete assembly @ horizontal
shaft into the upper & lower selection slider ® Grease
groove and mount with screw @.
5) Mount the T main brake assembly @ and S main
brake assembly @, Fix the two stopper washers
@ and hook the spring O.
3) Mount the tension regulator load arm assembly
according to 7-3-11, 2, Mounting, 2).
’) Perform 7-3-14, 2. Mounting, 13) to 18).
3) Mount the threading ring assembly according to Fig. 7-43.
7-8-7, 2, Mounting.
}) Mount the tension regulator band assembly
according to 7-3-5, 2. Mounting,
)) Mount the tension regulator arm assembly
according: to 7-3-4, 2, Mounting.
|) Mount the pinch press arm assembly according
to 7-3-3, 2, Mounting.
2) Mount the T reel table assembly according to
7-3-2, 2, Mounting.
3) Mount the $ reel table assembly according to
7-3-1, 2, Mounting,
—287—
