7-3-2. T Reel Table Assembly
1.
1).
2)
3)
4)
5)
6)
7)
Removal (See Fig. 7-7.)
Remove the cassette compartment assembly
according to Section 2. DISASSEMBLY 2-15,
Set to [UNLOADING WAIT] mode.
Hook the spring @ on the T.S brake assembly
@to the claw of lock slider.
Remove the stopper washer @ and remove the
T.S brake assembly @.
Set to [EJECT] mode.
Move drive gear B assembly @ in the direction
of the arrow,
Remove T reel table assembly -@.
Note: Be sure -to ,hold the upper: reel: claw
section when removing. (See Fig’: 7-7.
(Note))
2)
3)
4)
5)
6)
7)
Mounting (See Fig. 7-7.)
Put a half drop of oil on the upper point of shaft
9.
Move the drive gear B assembly @in the direction
of the arrow. (Confirm [EJECT] mode.)
Mount the T reel-table assembly @:°
Mount the T.S brake assembly Q@/and fix the
stopper washer @:
Hook the spring @ on the T.S brake assembly
Oclaw, i RS ‘
Set to
mode,
Mount the cassette compartment assembly in
opposite procedure of Section. 2,'DISASSEMBLY
2-15,
LOADING TOP] , [LOADING /UNLOADING]
* ® Stopper washer
@ T.S brake assembly
© T ree! table assembly
Note:
Hold here for removal
Note :
Clean with alcohol if
this part is touched,
Lock slider assembly

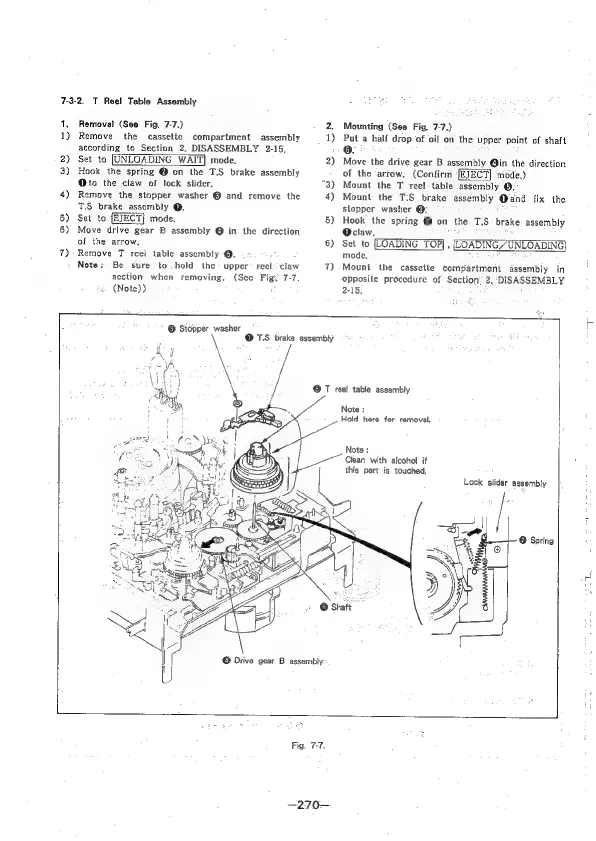

Fig. 7-7.
