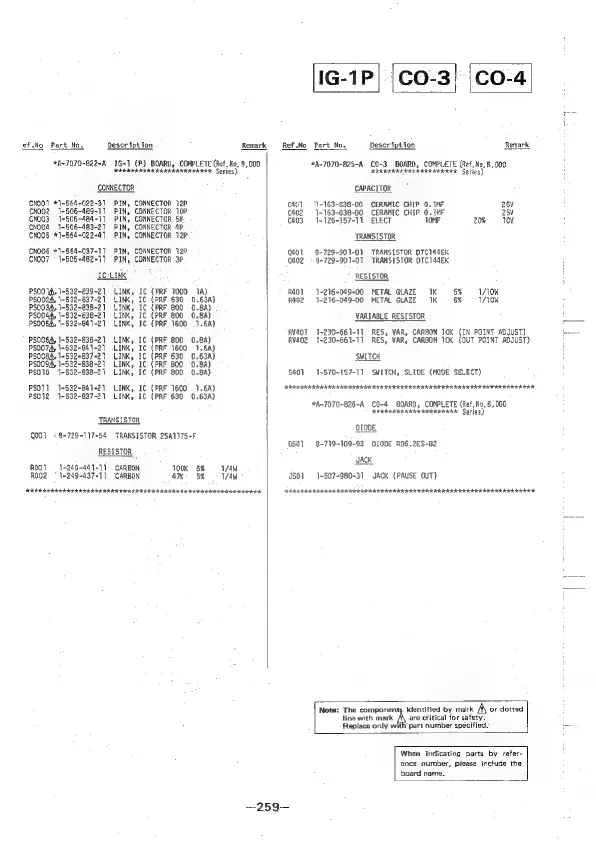

ef.No Part No. Description Remark
IG-1P| | CO-3; )}CO-4
Ref.No Part No. Description Remark
*A~7070-822-A 1G-1 (P) BOARD, COMPLETE (Ref.No, 9,000
Joliet bana EAE Series)
CONNECTOR
CNOO1 *3-564-022-31 PIN, CONNECTOR 12P
CNOO2 1-506-489-11 PIN, CONNECTOR 10P
CNOO3 1-506-484-1] PIN, CONNECTOR 5P
CNO04 1-506-483-21 PIN, CONNECTOR 4P
CNOO5 *1-564-022-41 PIN, CONNECTOR 12P
CNOO6 *1-564-037-11 PIN, CONNECTOR 12P
CNOO7 = 1+506-482-11 PIN, CONNECTOR 3P
IC-LINK
PSO0 1h. 1-532-839-27 LINK, IC (PRF 1000 1A)
PSOO2A, 1-532-837-21 LINK, 1C (PRF 630 0.63A)
PSOO3Ay 1-532-838-21 LINK, IC (PRF 800 0.8A}
PSO04fy 1-532-838-21 LINK, IC (PRF 800 0.8A)
PSOOSA. 1~532-841-27 LINK, IC (PRF 1600 1.68)
PSOO6Ay 1-532-838-21 LINK, IC (PRF 800 0.8A)
PSOO7Ay 1-532-841-21 LINK, IC (PRF 1600 1.68)
PSOO8#. 1+532-837-27 LINK, IC (PRF 630 0.63A)
PSOO9A, 1-532-838-21 LINK, IC {PRF 800 0
PSO1O 1-532-838-21 LINK, IC (PRF 800 0.8A)
PSO11 1-532-841-21 LINK, IC (PRF 1600 1.6A)
PSO1Z 1-532-837-21 LINK, IC (PRF 630 0.63A)
» 8
TRANSISTOR
Q001 = 8-729-117-54 TRANSISTOR 2$A1175-F
RESISTOR
ROO] = 1-249-441-11 CARBON 100K 5% Wan
R002 = -1-249-437-11 CARBON 4K 5S 1/4
Yn HSN OCA OTITIS III ITCH AITO IIDII AOI I
*A-7070-825-A CO-3 BOARD, COMPLETE (Ref.No, 8, 000
eink kateictact Series)
CAPACITOR
C401 =: 1-163-038-00 CERAMIC CHIP 0. MF 25v
C402. ««1-163-038-00 CERAMIC CHIP 0. IMF 25y
C403. «1-126-357-11. ELECT 0MF 20% 10v
TRANSISTOR
Q401 8-729-901-01 TRANSISTOR DTCI44EK
Q402 © 8-729-901-01 TRANSISTOR DTC144EK
“ RESISTOR
R401 1-216~049-00 METAL GLAZE 1K 5% 1/10W
R402 -'1-216-049-00 METAL GLAZE 1K 5% VWi0w
VARIABLE RESISTOR
RV401 1-230-661-11 RES, VAR, CARBON 10K (IN POINT ADJUST)
RV402 1-230-661-11 RES, VAR, CARBON 10K {QUT POINT ADJUST)
SWITCH
$401 1-570~157-11 SWITCH, SLIDE (MODE SELECT)
obiiniois abe oS I ASAI IRI IIIT III TSI ITI TI II TI IAI IIT.
*A-7070-826-A C0-4 BOARD, COMPLETE (Ref, No. 8,000
Aikinkkienankikatncke Series)
DIODE
050] 8-719-109-93 DIODE RDS.2ES-B2
JACK
J501 1-507-980-31 JACK (PAUSE OUT)
op aa Ino an RI OI III III ERIS IE SIT TOA TAT
fine with mark /\, are critical for safety:
Replace only with part number spécified.
(“ The sintean hae by mark A\ or dotted
When indicating parts by refer-
ence number, please include the
board name.
—259—
