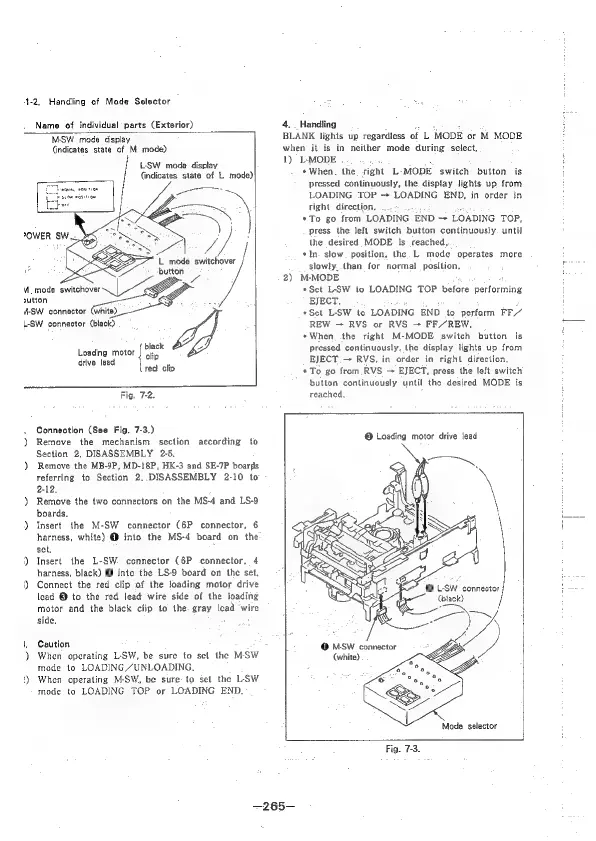

“1-2, Handling of Mode Selector
Name of individual parts (Exterior)
M-SW mode display
(indicates state of M mode)
L-SW mode display
(indicates state of L mode)
‘button
4
M.mode switchover |
outton re tty
“SW connector (white)
L-SW connector (black)
fi
drive lead vine
Loading motor | blag
red clip
Fig. 7-2.
. Gonnection (See Fig. 7-3.)
) Remove the mechanism section according to
Section 2, DISASSEMBLY 2-5,
) Remove the MB-9P, MD-18P, HK-3 and SE-7P boards
referring to Section 2,.DISASSEMBLY 2-10 to
2-12,
) Remove the two connectors on the MS-4 and LS-9
boards.
) Insert the M-SW connector (6P connector, 6
harness, white) @ into the MS-4 board on the
set, :
') Insert the L-SW connector (6P connector, 4
harness, black) @ into the LS-9 board on the set.
i) Connect the red clip of the loading motor drive
lead @ to the red lead wire side of the loading
motor and the black clip to the. gray lead wire
side,
1 Caution
) When operating L-SW, be sure to set the MSW
mode to LOADING “UNLOADING,
1) When operating M-SW, be sure to set the L-‘SW
mode to LOADING TOP or LOADING END.
4. _ Handling e :
BLANK lights up regardiess of L MODE or M MODE
when it is in neither mode during select.
1) L-MODE . .
«When. the right L-MODE switch button is
pressed continuously, the display lights. up from
LOADING TOP + LOADING END, in order in
right direction. . ae
*To go from LOADING END -+ LOADING TOP,
press the left switch button continuously. until
the desired MODE is reached,
«In. slow. position, the. L mode operates more
slowly..than for normal position,
2) M-MODE
*Set L-SW io LOADING TOP before performing
EJECT. é -
*Set L-SW to LOADING END to perform FF/
REW — RVS or RVS + FF/REW.
«When the right M-MODE switch button is
pressed continuously, the display lights up from
EJECT. — RVS, in order in right direction.
*To go from RVS — EJECT, press the left switch
button continuously until the desired MODE is
reached,
® Loading motor drive lead
@ L-SW connector
,
@ M-SW connector
(white)
Mode selector
Fig. 7-3.
—265—
